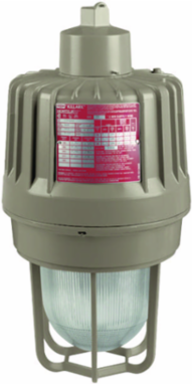

Killark EZS070A2 HID 70W Quadri-Volt High Pressure Sodium 3/4 Inch Pendant Fixture
- MPN: EZS070A2
- UPC: 783936146768
- PPN: HBL-EZS070A2
CAD
$2887.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The EZ series Explosion Proof mogul base HID fixture is designed for High bay applications. This fixture is made with a cast copper-free aluminum housing and mount that is powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments. The EZ Series is factory sealed so no external seal is required in Explosive environments.
Features
- Three light sources – High Pressure Sodium (50-400W), Metal Halide (70-400W) and Pulse Start Metal Halide (175-400W)
- Mounting choice –Pendant, ceiling, 25˚ stanchion or 90˚ wall mount, all with “wireless” design that allows fast, easy fixture installation or removal for maintenance.
- Factory sealed – No external seal needed. Simply wire mounting cap and thread on fixture to install
- Corrosion resistant – Copper-free aluminum die cast construction. Baked powder epoxy finish, electrostatically applied. Exposed hardware is 316 grade stainless steel.
- Accessories – Available with or without guard, standard dome or angle reflector
- Options – EZ Series fixtures can be specified with instant restart for HPS lamps, auxiliary quartz circuit, ballast protector, and fuse kits.
Documentation & Downloads
Specifications
Key Specifications
- Finish Type
- Powder Epoxy Paint
- Light Source
- High Pressure Sodium
- Mounting Type
- Pendant
- Series
- EZ
- Hub Size
- 3/4"
- Voltage Rating
- Quad - 120/277/347/480 VAC
- Carton Quantity
- 1
Lamp TypeMogul Base
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Optic TypeGlass Globe - Fluted
UPC783936146768
Frequency Rating60 Hz
Wattage70 W
