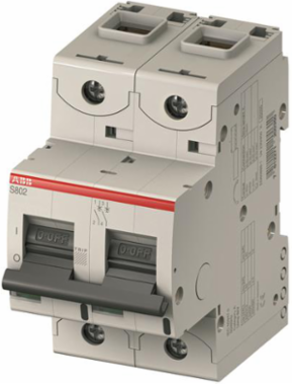

ABB S802PV-S125 High Performance MCB Provides for Photovoltaic Systems
- MPN: S802PV-S125
- UPC: 080432545423
- PPN: ABB-S802PV-S125
CAD
$733.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Performance Miniature Circuit Breaker for Photovoltaic Systems, Rated Current 125 Amps, 2 Pole, Trip Curve B, Voltage up to 800 VDC, Ultimate Short-Circuit Breaking Capacity 5 kA, IEC/EN 60947-2
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121603 Miniature circuit breakers |
|---|---|
| Brand Name | ABB |
| Application | Remote-Controlled String Management and Convenient GFDI Solutions |
| Voltage Rating | 800 VDC |
| Trip Type | B |
| Number Of Poles | 2 |
| Width | 53 mm |
| IGCC | 4897 Miniature circuit breakers |
|---|---|
| Type | High Performance MCB Provides for Photovoltaic Systems |
| Standard | IEC/EN 60947-2 |
| Amperage Rating | 25 Amps |
| Interrupt Rating | 5 kA |
| Length | 88.5 mm |
| Height | 95 mm |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1.14 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
