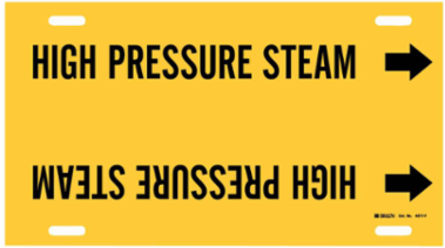

Brady 4077-F High Pressure Steam Pipe Marker, 8" H x 16" W, Fits Pipes 6" Dia. Thru 7.875" Dia.
- MPN: 4077-F
- UPC: 754473414351
- PPN: BRD-4077-F
- UNSPSC: 55121737
CAD
$22.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The ASME (ANSI) Standard for pipe identification is a widely used guideline in determining pipe identification requirements.
Features
- Designed for general purpose pipe identification
- May be applied to dirty, oily, greasy or rough surfaces
- Meets ASME (ANSI) Standard
- Lightweight coiled plastic can be removed and reapplied

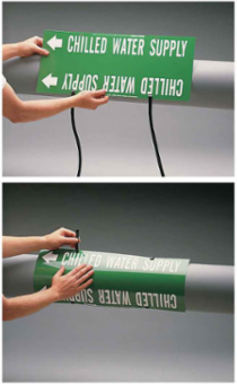

- Includes two nylon straps for mounting to pipes
- Additional strapping (Brady 41772) sold separately
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Brand Name
- Brady®
- Compatible Surface Types
- Curved
- Includes
- (2) Nylon Mounting Straps; Pipe Marker
- Pictogram Description
- Directional Arrow Symbol
- Pipe Marker Style
- F
- Primary Noun, Basic Function
- Pipe Marker
- PSPA Photoluminescence Class
- Not Illuminated
- Text Legend
- HIGH PRESSURE STEAM
- Brady Material Number
- B-915
- Label Properties
- Harsh Environment Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant
- Average Outdoor Durability
- 5 to 8 Years
- Dimensions
- 8 in H x 16 in W
- Dimensions 2
- 8 in H x 16 in W
- Height (mm/cm/m)
- 20.32 cm
- Maximum Outside Pipe Diameter (mm/cm/m)
- 200.03 mm
- Maximum Service Temperature °F
- 140 °F
- Minimum Outside Pipe Diameter (mm/cm/m)
- 152.4 mm
- Minimum Service Temperature °F
- -40 °F
- Roll/Tape Size (in/ft/yd)
- 8 in H x 16 in W
- Size
- F
- Width (mm/cm/m)
- 40.64 cm
Arrow DirectionRight
ColorBlack on Yellow
Enables Industry ComplianceANSI A13.1-2007
LanguageEnglish
Pipe Marker Mounting StyleStrap-On
Pre-Printed Areas on LabelPipe Contents
Printer and Label ApplicationsPipe Marker
Reflective TypeNon-Reflective
Trade NameStrap-On
Indoor or Outdoor UseOutdoor Use
MaterialPlastic
SAP B-NumberB-915
Character Height (in/ft/yd)1.25 in
Dimensions (Metric)20.32 cm H
Height (in/ft/yd)8 in
Maximum Outside Pipe Diameter (in/ft/yd)7.875 in
Maximum Service Temperature °C60 °C
Minimum Outside Pipe Diameter (in/ft/yd)6 in
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 6" Dia. Thru 7.875in Dia.
Sign Size-General8 in x 16 in
Width (in/ft/yd)16 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
