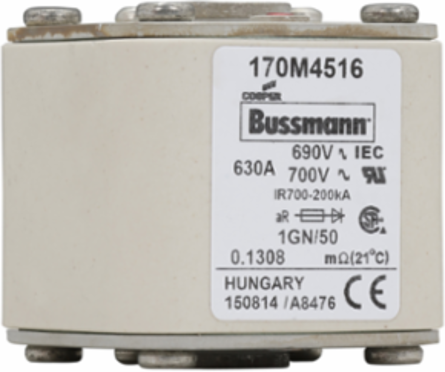

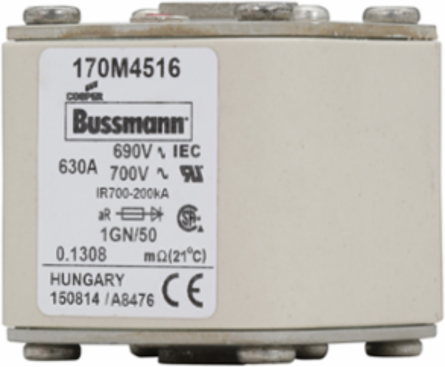

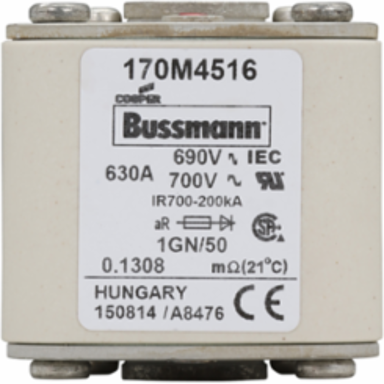

Bussmann 170M4516 High Speed Fuse 630A RMS, 5.433 Inch Length, Class aR, Non Indicating
- MPN: 170M4516
- UPC: 051712259187
- PPN: BUS-170M4516
CAD
$685.68
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Fuse 630A RMS, 5.433 Inch Length, Class aR, Non Indicating
Specifications
Key Specifications
| Type | Square body -BKN/- type K indicator for micro |
|---|---|
| Amperage Rating | 630A |
| Interrupt Rating | 200 kAIC |
| Packaging Type | Standard |
| Pre Arc (I2T) | 52000 |
| Class | Class aR |
| Mounting | Flush |
| Length | 5.433 IN |
| Weight | 1.6456 LB |
| Application | DC common bus, DC drives, power converters/rectifiers |
|---|---|
| Voltage Rating | 700 Vac (UL), 690 Vac (IEC) |
| Fuse Indicator | Non Indicating |
| Current Rating | 630A RMS |
| Clearing (I2T) | Clearing at 660V: 350000 |
| Watt Losses | 80W |
| Height | 2.087 IN |
| Width | .315 IN |
