Bussman

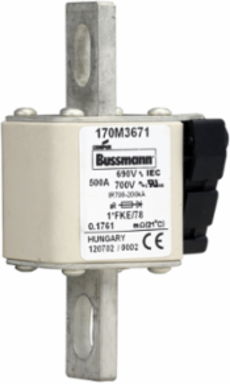

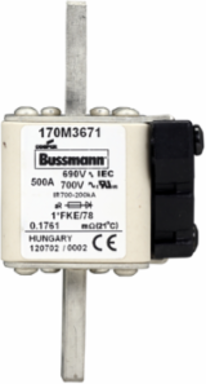

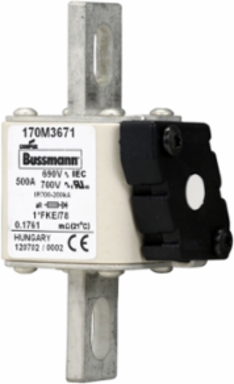

Bussman 170M3671 High Speed Fuse, 500A, 2.087 Inch Height, 5.433 Inch Length, 700 Vac

High Speed Fuse, 500A, 2.087 Inch Height, 5.433 Inch Length, 700 Vac
High Speed Fuse, 500A, 2.087 Inch Height, 5.433 Inch Length, 700 Vac
High Speed Fuse, 500A, 2.087 Inch Height, 5.433 Inch Length, 700 Vac
  • MPN: 170M3671
  • UPC: 051712799539
  • PPN: BUS-170M3671

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$602.17/ EA

Specifications

Specifications

Type
Square body, US style -FKE/- type K indicator for micro
Amperage Rating
500A
Interrupt Rating
200 kAIC
Packaging Type
Standard
Pre Arc (I2T)
27000
Class
Class aR
Watt Losses
70W
Length
5.433 IN
Weight
1.6456 LB
ApplicationDC common bus, DC drives, power converters/rectifiers
Voltage Rating700 Vac (UL), 690 Vac (IEC)
Fuse IndicatorNon Indicating
Current Rating500A RMS
Clearing (I2T)Clearing at 660V: 180000
ConnectionBlade end X blade end
Height2.087 IN
Width.315 IN
