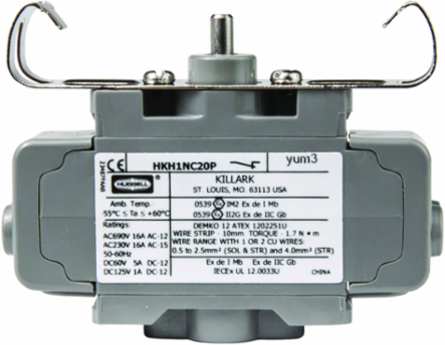

Killark HKH1NC20PE Factory Sealed E-Stop 20A NC Contact Panel Mount, 24-690V AC/DC
- MPN: HKH1NC20PE
- UPC: 783936124148
- PPN: HBL-HKH1NC20PE
CAD
$113.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HKH 20A Factory Sealed E-Stop - NC Contact - Panel Mount
Features
- Explosion Protected Panel Mount ESTOP contact block 690VAC N.O. & N.C. capable of 20 Amps for Switching Duty and HP Ratings up to 1HP.
- Killark HKH HAZCON™ Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications, ON/OFF functions for Lighting Circuits and more. Utilized in Class 1 Division 2, Class 1 Zone 1 areas where Type 3, 4, 4X, 12 and 13 weather-ingress ratings are required for indoor and outdoor use. Certified for use in the European Union with ratings for IECEx and ATEX in addition to IP66 water ingress protection.
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Horsepower - Maximum | 1 |
| Voltage Rating | 24-690 AC/DC V |
| Amperage Rating | 20 A |
| Frequency Rating | 50/60 Hz |
| Class Code | D25 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | R |
| Sub Class Code | D25D250 |
| UL File Number | E12379 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 20 |
| Hazardous Rating(s) | Class I, Division 2, Groups A, B, C, D;Class I, Zones 1 & 2 |
|---|---|
| Operating Temperature Range Celcius | -40°C to 55°C |
| Action | Momentary |
| Application | Contact block shall be installed in a Class I, Zone 1, AEx e II/Ex e IIC increased safety enclosure with a minimum IP54 rating or a Class I, Zone 1, AEx d IIC/Zone 21, Aex tb minimum IP64 rating, where the suitability is determined in the end application. |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CONTACT BLCK,ESTOP FACT SEAL NC PM,20A |
| Harmonization Code | 8536908585 |
| MSDS Flag | No |
| Buy America(n) Qualified | Contact Manufacturer |
| Series | HKH Series |
| BOX SIZE | 0.000x0.000x0.000 (in) |
| Carton - Number of Sub Packs | 20 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936124148 |
| NAICS Code | 335313A111 |
