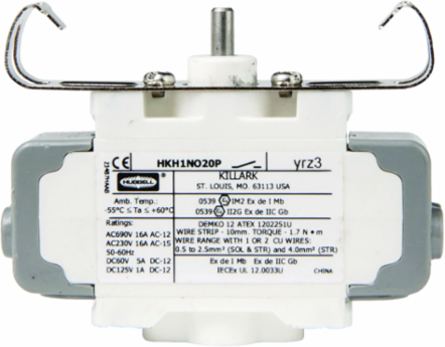

Killark HKH1NO20PE Factory Sealed E-Stop 20 Amp, IP66, for Hazardous Locations
Killark HKH1NO20PE Factory Sealed E-Stop 20 Amp, IP66, for Hazardous Locations
- MPN: HKH1NO20PE
- UPC: 783936124162
- PPN: HBL-HKH1NO20PE
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$99.91/ EA
Description
HKH 20A Factory Sealed E-Stop - NO Contact - Panel Mount
Features
- Explosion Protected Panel Mount ESTOP contact block 690VAC N.O. & N.C. capable of 20 Amps for Switching Duty and HP Ratings up to 1HP.
- Killark HKH HAZCON™ Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications, ON/OFF functions for Lighting Circuits and more. Utilized in Class 1 Division 2, Class 1 Zone 1 areas where Type 3, 4, 4X, 12 and 13 weather-ingress ratings are required for indoor and outdoor use. Certified for use in the European Union with ratings for IECEx and ATEX in addition to IP66 water ingress protection.
Specifications
Specifications
- Country of Origin
- CN
- Horsepower - Maximum
- 1
- Voltage Rating
- 24-690 AC/DC V
- Amperage Rating
- 20 A
- Frequency Rating
- 50/60 Hz
- Class Code
- D25
- Freight Class Code
- 06168002
- Image Actual Or Representative
- R
- Sub Class Code
- D25D250
- Series
- HKH Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 20
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936124162
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class I, Zones 1 & 2
Operating Temperature Range Celcius-40°C to 55°C
ActionMomentary
ApplicationContact block shall be installed in a Class I, Zone 1, AEx e II/Ex e IIC increased safety enclosure with a minimum IP54 rating or a Class I, Zone 1, AEx d IIC/Zone 21, Aex tb minimum IP64 rating, where the suitability is determined in the end application.
ARRA CompliantContact Manufacturer
Description - InvoiceCONTACT BLCK,ESTOP FACT SEAL NO PM,20A
Harmonization Code8536908585
MSDS FlagNo
UL File NumberE12379
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units20
Certifications
- EU RoHS Indicator
- Contact Manufacturer
