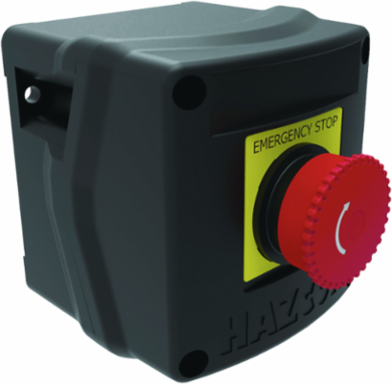

Killark HKH1ANDAM71E Maintained Contact Push Button E-Stop, M20, Wall Mount, 1 HP, IP66 Rated
Killark HKH1ANDAM71E Maintained Contact Push Button E-Stop, M20, Wall Mount, 1 HP, IP66 Rated
- MPN: HKH1ANDAM71E
- UPC: 783936133041
- PPN: HBL-HKH1ANDAM71E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$886.63/ EA
Description
HKH Maintained Contact Push Button E-Stop (Twist Release)- Din Rail Mount- M20 - Non-Metallic 1a
Features
- Size 1 Control Stations available as 1a, 1b, & 1c as standard catalog number offerings for 1, 2 & 3 device openings and will accept 2-M20 entries in either end.
- Ammeters available in 1b & 1c.
- Size 2 Enclosures available as 2a & 2c for 2, 4 & 6 device entries in cover with ability to accept 2-M25 entries in either end.
- Operating Temperature of -50ºC to +60ºC.
- Explosion Protected contact blocks 690 VAC N.O. & N.C. capable of 20 Amps for Switching Duty and HP Ratings up to 1HP.
- LED Pilot Light modules for 12-250V AC/ DC for UL applications. 12-254V AC/DC for IEC applications.
- Contacts & Pilot lights can be mounted inside enclosure on Din Rail or in cover to the actuator.
- Accessories available for Lockout/Tag Out functions made in 316 stainless steel.
- Killark HKH HAZCON™ Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications, ON/OFF functions for Lighting Circuits and more. Utilized in Class 1 Division 2, Class 1 Zone 1 areas where Type 3, 4, 4X, 12 and 13 weather-ingress ratings are required for indoor and outdoor use. Certified for use in the European Union with ratings for IECEx and ATEX in addition to IP66 water ingress protection.
Specifications
Specifications
- Color
- Red
- Depth
- 4.16
- Horsepower - Maximum
- 1
- Operating Temperature Range Celcius
- -50°C to 60°C
- Action
- Maintained
- Amperage Rating
- 20 A
- Frequency Rating
- 50/60 Hz
- Nema Rating
- 3, 4, 4X, 12, 13
- Class Code
- D25
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- D25D250
- Material
- Plastic
- Base Unit of Measure
- EA
Country of OriginUS
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class II, Division 1, Groups E, F, G (Canada Only);Class II, Division 2, Groups E, F, G;Class III, Divisions 1 & 2;Zones 1 & 2;Zones 21 & 22
Hub SizeM20
Weight0.75 lb.
ActuatorMushroom Pushbutton
ApplicationHazardous and corrosive environments due to the presence of flammable gases or vapors, combustible dusts or ignitable fiber or flyings, Installations at petroleum refineries, chemical and petrochemical plants and other processing or storage facilities where similar hazards exist, Use in conjunction with motor starters or contactors for remote control of motors
Mounting TypeWall
ARRA CompliantContact Manufacturer
Description - InvoicePB ESTOP TWIST MT SGL HKH NM 1A DRM M20
Harmonization Code8536509035
MSDS FlagNo
UL File NumberE53360
SeriesHKH Series
Carton - SCC-14 Next Lower Level Sub Pack00783936133041
Certifications
- EU RoHS Indicator
- Contact Manufacturer
