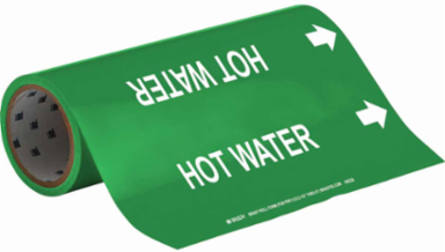

Brady 109220 Hot Water Pipe Marker, 30' H x 12" W, Roll of 30', Fits Pipes, 2.5" Dia. Thru 6" Dia.
Brady 109220 Hot Water Pipe Marker, 30' H x 12" W, Roll of 30', Fits Pipes, 2.5" Dia. Thru 6" Dia.
- MPN: 109220
- UPC: 754473674526
- PPN: BRD-109220
- UNSPSC: 55121737
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$346.30/ EA
Description
Roll Form pipe markers eliminate the need for precise measurement of pipe diameter - simply cut to the size you need.
Features
- B-946 vinyl is printed with weather resistant inks and is suited for use in outdoor applications where weatherability is a key consideration.
- Designed for permanent applications in severe indoor or outdoor environments
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
Specifications
Specifications
- Applications
- Pipe and Valve Marking
- Brand Name
- Brady®
- Compatible Surface Types
- General
- Finish
- Gloss
- Pictogram Description
- Directional Arrow Symbol
- Pre-Printed Areas on Label
- Pipe Contents
- Printer and Label Applications
- General Identification; Pipe Marker
- Self-Adhesive Pipe Marker Format
- Die-Cut on Cards
- Adhesive Type
- Permanent Acrylic
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Vinyl
- SAP B-Number
- B-946
- Dimensions
- 12 in W x 30 ft L
- Dimensions 2
- 12 in W
- Maximum Outside Pipe Diameter (in/ft/yd)
- 6 in
- Maximum Service Temperature °C
- 82 °C
- Minimum Application Temperature °C
- -18 °C
- Minimum Outside Pipe Diameter (in/ft/yd)
- 2.5 in
- Minimum Service Temperature °C
- -40 °C
- Overall Size
- Fits Pipes 2.5" Dia. Thru 6in Dia.
- Roll/Tape Length (in/ft/yd)
- 30 ft
- Thickness (in/ft/yd)
- 0.004 in
- Width (in/ft/yd)
- 12 in
Arrow DirectionLeft
ColorWhite on Green
Enables Industry ComplianceANSI A13.1-2007
LanguageEnglish
Pipe Marker Mounting StyleSelf-Adhesive
Primary Noun, Basic FunctionPipe Marker
Reflective TypeNon-Reflective
Text LegendHOT WATER
Brady Material NumberB-946
Label PropertiesAggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Water-Resisitant
Average Outdoor Durability8 to 10 Years
Dimensions (Metric)9.14 m H
Height (mm/cm/m)9.14 m
Maximum Outside Pipe Diameter (mm/cm/m)152.4 mm
Maximum Service Temperature °F180 °F
Minimum Application Temperature °F0 °F
Minimum Outside Pipe Diameter (mm/cm/m)63.5 mm
Minimum Service Temperature °F-40 °F
Roll Width (in/ft/yd)12 in
Roll/Tape Size (in/ft/yd)12 in W x 30 ft L
Thickness (mm/cm/m)0.102 mm
Width (mm/cm/m)30.48 cm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- No
Contains CA PROP 65 SubstanceNo
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
