Brady 90447 HSD VAP AMMONIA HIGH Pipe Marker, 4" H x 24" W, Fits Pipes 8" Dia. or Larger
- MPN: 90447
- UPC: 754473904470
- PPN: BRD-90447
- UNSPSC: 55121737
CAD
$9.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

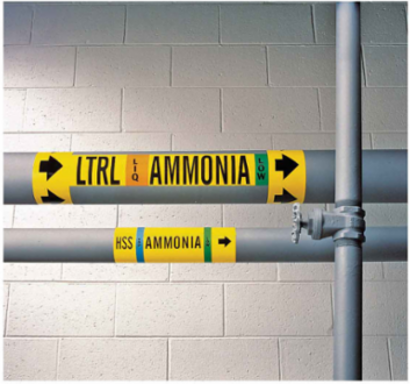

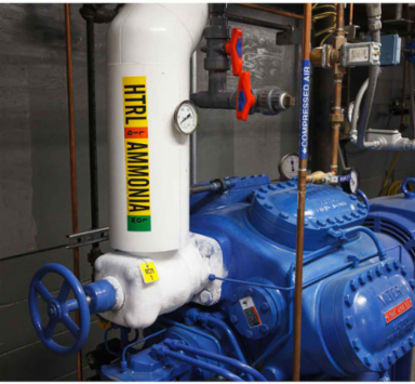

These IIAR-compliant pipe markers come with the traditional yellow background and are recommended for use in labeling ammonia piping and its contents.
Features
- IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
- Style 1HV pipe markers measure 4 in. x 24 in., come with one marker per card and fit 8 in. or greater pipe diameter
- B-946 Pressure Sensitive Vinyl is printed with weather-resistant inks and is suitable for indoor and outdoor applications
- Use with directional arrow pipe markers or banding tape
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Color
- Black/Blue/Red on Yellow
- Compatible Surface Types
- General
- Finish
- Gloss
- IIAR Phase
- VAP
- IIAR System Abbreviation
- HSD
- Pipe Marker Mounting Style
- Self-Adhesive
- Pre-Printed Areas on Label
- IIAR Legend
- Printer and Label Applications
- General Identification; Pipe Marker
- Self-Adhesive Pipe Marker Format
- Die-Cut on Cards
- Brady Material Number
- B-946
- Label Properties
- Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Weather-Resistant
- Average Outdoor Durability
- 8 to 10 Years
- Character Height (mm/cm/m)
- 88.9 mm
- Dimensions (Metric)
- 101.6 mm H
- Height (in/ft/yd)
- 4 in
- Maximum Service Temperature °C
- 82 °C
- Minimum Application Temperature °C
- -18 °C
- Minimum Outside Pipe Diameter (in/ft/yd)
- 8 in
- Minimum Service Temperature °C
- -40 °C
- Overall Size
- Fits Pipes 8" Dia. or larger
- Sign Size-General
- 4 in x 24 in
- Thickness (in/ft/yd)
- 0.004 in
- Width (in/ft/yd)
- 24 in
Brand NameBrady®
Combined IIAR LegendAMMONIA HSD VAP HIGH
Enables Industry ComplianceANSI A13.1-2007
IIAR LegendAMMONIA
IIAR Pressure LevelHIGH
LanguageEnglish
Pipe Marker Style1HV
Primary Noun, Basic FunctionPipe Marker
Reflective TypeNon-Reflective
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialVinyl
SAP B-NumberB-946
Character Height (in/ft/yd)3.5 in
Dimensions4 in H x 24 in W
Dimensions 24 in H x 24 in W
Height (mm/cm/m)101.6 mm
Maximum Service Temperature °F180 °F
Minimum Application Temperature °F0 °F
Minimum Outside Pipe Diameter (mm/cm/m)203.2 mm
Minimum Service Temperature °F-40 °F
Roll/Tape Size (in/ft/yd)4 in H x 24 in W
Size1HV
Thickness (mm/cm/m)0.102 mm
Width (mm/cm/m)60.96 cm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- No
Contains CA PROP 65 SubstanceNo
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
