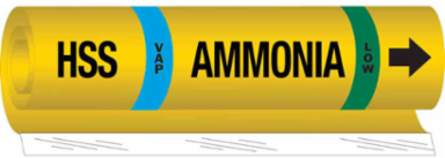

Brady 57988 HSS VAP AMMONIA LOW Pipe Marker, 26" H x 12" W, Fits Pipes 2.5" Dia. Thru 7.875" Dia.
- MPN: 57988
- UPC: 754473579883
- PPN: BRD-57988
- UNSPSC: 55121737
CAD
$23.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These IIAR-compliant pipe markers come with the traditional yellow background and are recommended for use in labeling ammonia piping and its contents.
Features
- IIAR pipe markers should include: the marker body (AMMONIA), physical state, pressure level, directional arrows, and an ammonia piping abbreviation
- Style II wrap-around pipe markers fit pipes with outside diameter of 2-1/2 in. to 7-7/8 in.
- B-689 coiled pipemarkers are designed for marking rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
- Pipe marker includes directional arrows
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Color
- Black/Blue/Green on Yellow
- Compatible Surface Types
- Curved; Rough
- IIAR Legend
- AMMONIA
- IIAR Pressure Level
- LOW
- Language
- English
- Pipe Marker Style
- II
- Primary Noun, Basic Function
- Pipe Marker
- Self-Adhesive Pipe Marker Format
- Die-Cut on Cards
- Indoor or Outdoor Use
- Outdoor Use
- Laminated
- Polyester Overlaminate
- Material Properties
- Self-laminating
- SAP B-Number
- B-689
- Character Height (in/ft/yd)
- 1.25 in
- Dimensions
- 26 in H x 12 in W
- Dimensions 2
- 26 in H x 12 in W
- Height (mm/cm/m)
- 66.04 cm
- Maximum Outside Pipe Diameter (mm/cm/m)
- 200.03 mm
- Maximum Service Temperature °F
- 248 °F
- Minimum Outside Pipe Diameter (mm/cm/m)
- 63.5 mm
- Minimum Service Temperature °F
- -40 °F
- Roll/Tape Size (in/ft/yd)
- 26 in H x 12 in W
- Size
- II
- Thickness (mm/cm/m)
- 0.152 mm
- Width (mm/cm/m)
- 30.48 cm
Brand NameBrady®
Combined IIAR LegendAMMONIA HSS VAP LOW
Enables Industry ComplianceANSI A13.1-2007
IIAR PhaseVAP
IIAR System AbbreviationHSS
Pipe Marker Mounting StyleWrap Around
Pre-Printed Areas on LabelIIAR Legend
Printer and Label ApplicationsPipe Marker
Brady Material NumberB-689
Label PropertiesHarsh Environment Labels
MaterialCoiled Plastic
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Humidity-Resistant; Weather-Resistant
Average Outdoor Durability5 to 8 Years
Character Height (mm/cm/m)31.8 mm
Dimensions (Metric)66.04 cm H
Height (in/ft/yd)26 in
Maximum Outside Pipe Diameter (in/ft/yd)7.875 in
Maximum Service Temperature °C120 °C
Minimum Outside Pipe Diameter (in/ft/yd)2.5 in
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 2.5" Dia. Thru 7.875in Dia.
Sign Size-General26 in x 12 in
Thickness (in/ft/yd)0.006 in
Width (in/ft/yd)12 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- No
Contains CA PROP 65 SubstanceNo
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
