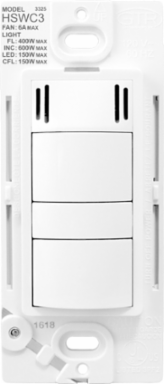

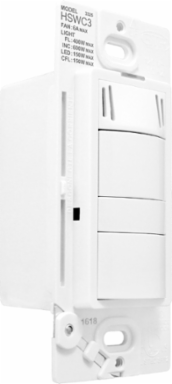

Pass & Seymour HSWC3W Humidity Based Fan Control, White with Moisture-Sensing Technology
- MPN: HSWC3W
- UPC: 785007057416
- PPN: P-S-HSWC3W
CAD
$92.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Humidity Based Fan Control, White with Moisture-Sensing Technology
Features
- Turns ON the fan when condensation is present and OFF when dry.
- Adjusts sensors to solve moisture problems.
- Helps fight mold.
- Ultra moisture-sensing adaptive technology (patented).
- Manual timer settings from 5-60 minutes.
- Great for tenant and family use.
- Manual fan control for immediate ventilation.
- Manual bathroom lighting control (HSWC only).
- Lets you know the fan is ON.
- Tamper-proof settings cover.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 2.25 in |
|---|---|
| Height | 4.5 in |
| Weight | 0.3 lb |
| Width | 2.25 in |
| Country of Origin | China |
| Preset | Yes |
| Load Type | LED |
| Voltage | 120 VAC |
| Load Type | Halogen |
| Frequency Rating | 60 Hz |
| Load Type | Incandescent |
| Number of Switches | 2.0 |
| Wire Size | #14 - #12 AWG |
| Requires Neutral Wire | Yes |
| Load Rating | 120V 150W (CFL) |
| Load Rating | 120V 400W (EFL) |
| Features | Humidity Fan Control |
| Application Sector | Residential |
| Load Rating | 120V 6A (FAN MOTOR) |
| Application Sector | Light Commercial |
| Load Rating | 120V 600W (Incandescent) |
| Warranty Type | Limited Lifetime Warranty |
| Color | Light Almond |
|---|---|
| Finish | Matte |
| Material | Thermoplastic |
| Product Line | Pass & Seymour |
| Product Volume | 22.781 |
| Load Type | CFL |
| Standard | RoHS |
| Switch Type | Push |
| Indoor/Outdoor | Indoor |
| Load Type | AC Fan Motor |
| Mounting Type | Wall Box |
| Type | Fan Speed Control |
| Features | Indicator Lights |
| Timing Range | 5-60 minutes |
| Load Rating | 120V 150W (LED) |
| Number of Poles | Single Pole |
| Application Sector | Hospitality |
| Load Rating | 120V 600W (Halogen) |
| Wire Connection Type | Flying Leads |
| Dimming Compatibility | Fan Speed Only |
| Application Sector | Multi-Dwelling Unit |
| Special Features | Humidity Based Fan Control, HSW, adds intelligent moisture detection to any fan or ventilation system. HSW senses condensation levels in the air, turns on the fan or ventilation system, and runs it until the room is back to a safe moisture level. HSW has adjustable timer settings for manual time use and adjustable condensation for sensitivity. The capability to adjust the sensitivity level on HSW enables the end user to truly tailor their fan or ventilation system to any environment regardless of room size, climate or season. |
