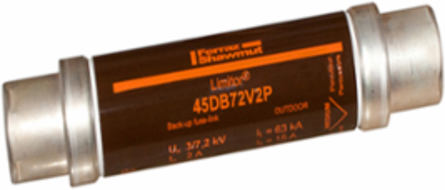

Mersen N1000098 Limitor -P HV Fuse, 7.2kV, 2A, 192mm Length, 56mm Diameter, Medium Striker 80N
- MPN: N1000098
- PPN: FER-N1000098
CAD
$1165.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades. Limitor®-P HV fuses are back-up fuses as defined in the IEC 60282-1 standard and dedicated to protect transformers against effects of short-circuit currents. To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
Specifications
Key Specifications
| Rated voltage AC IEC | 7.2 kV |
|---|---|
| AC or DC | AC |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 63 kA |
| Design Details | VDE T4 |
| Indication System Type | Striker |
| Connection/Terminal Type | Cylindrical |
| Power Dissipation at Rated Current Value | 1.8 W |
| Weight | 2.646 lb |
| Ampere Rating | 2 A |
|---|---|
| Fuse Size | d=56mm, L=192mm |
| Clearing I2t At Rated Voltage | 0.6 kA²s |
| Min Interrupting Rating (MBC) | 15 A |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Ceramic |
| Length | 10.16 in |
