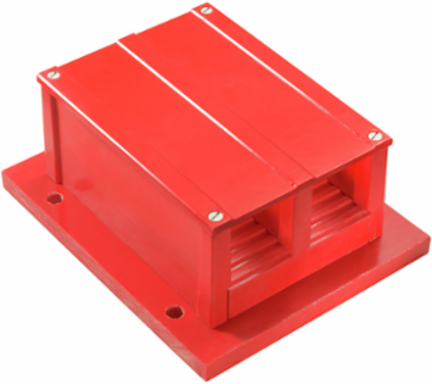

Weidmuller 2496040000 HV4000/2-M12 F
- MPN: 2496040000
- PPN: WDM-2496040000
CAD
$664.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HV4000/2-M12 F
Specifications
Stud Connection
| Cable lug to DIN 46234 | 10...240 mm² |
|---|---|
| Clamping range, bolted connection , min. | 10 mm² |
| Stud size for spade connection | M 12 |
| Tightening torque, min. | 63 Nm |
| Clamping range, bolted connection , max. | 240 mm² |
|---|---|
| Impulse voltage with epoxy resin partition plate | 30 kV |
| Tightening torque, max. | 65 Nm |
| Voltage with epoxy resin partition plate | 4,000 V |
Dimensions And Weights
| Length | 220 mm |
|---|---|
| Width | 180 mm |
| Height | 96.1 mm |
| Mounting dimension - width | 155 mm |
| Net weight | 3,500 g |
| Length (inches) | 8.661 inch |
|---|---|
| Width (inches) | 7.087 inch |
| Height (inches) | 3.783 inch |
| Mounting dimension - height | 130 mm |
| Diameter | 11 mm |
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
Temperatures
| Continuous operating temp., min. | -50 °C |
|---|
| Continuous operating temp., max. | 140 °C |
|---|
Rating Data
| Rated cross-section | 240 mm² |
|---|---|
| Voltage with epoxy resin partition plate | 4,000 V |
| Current at maximum wires | 700 A |
| Rated impulse withstand voltage | 30 kV |
| Pollution severity | 3 |
| Rated voltage | 4,000 V |
|---|---|
| Rated current | 700 A |
| Standards | EN 45545-1:2013, EN 45545-2:2013, EN 45545-5:2013, EN 50124-1:2015, EN 50125-1:2015, EN 50153:2014- 09, EN 50163:2005- 07, EN 60077-1-2:2002, EN 60529:2014- 09, EN 61373:2010, EN 62208:2011, EN 62262:2002 |
| Impulse voltage with epoxy resin partition plate | 30 kV |
Conductors For Clamping (Rated Connection)
| Cable lug to DIN 46234 | 10...240 mm² |
|---|---|
| Clamping range, bolted connection , min. | 10 mm² |
| Clamping range, min. | 10 mm² |
| Connection cross-section, finely stranded, max. | 240 mm² |
| Connection direction | top, Bottom |
| Stud size for spade connection | M 12 |
| Tightening torque, min. | 63 Nm |
| Clamping range, bolted connection , max. | 240 mm² |
|---|---|
| Clamping range, max. | 240 mm² |
| Clamping screw | M 12 |
| Connection cross-section, finely stranded, min. | 10 mm² |
| Number of connections | 4 |
| Tightening torque, max. | 65 Nm |
| Type of connection | Screw connection |
