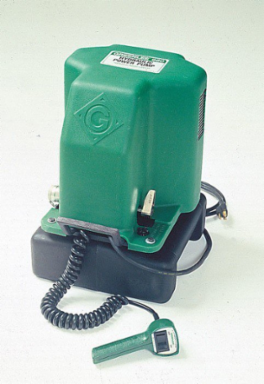

Greenlee 980 Hydraulic Power Pump - 1-1/2 HP, 10000 PSI, 300 IN³/MIN Flow Rate
Greenlee 980 Hydraulic Power Pump - 1-1/2 HP, 10000 PSI, 300 IN³/MIN Flow Rate
- MPN: 980
- UPC: 783310335153
- PPN: GRN-980
- UNSPSC: 40151533
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Hydraulic Power Pump - 1-1/2 HP, 10000 PSI, 300 IN³/MIN Flow Rate
Features
- Handy pendant advance control on 980 and 980-22PS
- Low voltage pendant coupled to solid state motor controls eliminates contact arcing for greater reliability and longer life
- Automatic or manual ram return selector valve provides more control from the pendant switch
- Molded enclosure protects pump, motor and circuitry in tough working environments
- Use with single-hose hydraulic systems with spring-return rams
- 100 PSI 225 IN³/MIN. - NOMINAL - 200 MIN.
- 8000 PSI 56 IN³/MIN. -NOMINAL -54 MIN.
Specifications
Specifications
- Country of Origin
- United States
- Operation
- 120 VAC 1-1/2 HP (1.120 KW)
- Voltage Rating
- 120 VAC
- Number Of Stages
- 1
- Phase
- 1
- Casing Material
- Plastic
- Type
- Hydraulic Pump
Useable oil volume6 quarts (5
Pressure Rating10000 PSI (700 Bar)
Model980
Flow Rate0 PSI 300 IN³/MIN.- NOMINAL- 275 MIN.
MountingNone
IncludesPendent
Capacity10,000 PSI (700 Bar)
Motor Information
- Horsepower
- 1-1/2 HP (1.12 KW)
Downloads
