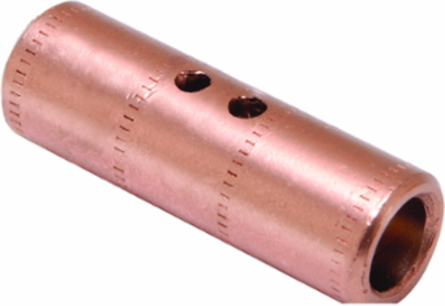

Burndy YGHS28 Heavy Duty Irreversible Compression Terminals, 2.59 Inch Length, 4/0 AWG Copper
- MPN: YGHS28
- UPC: 781810220474
- PPN: BUR-279056
CAD
$85.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Heavy Duty Irreversible Compression Terminals, 2.59 in L.
Documentation & Downloads
Specifications

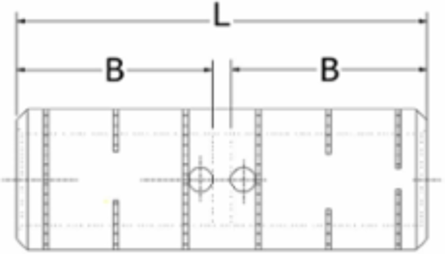

Dimensions
- Dimension - B Length fraction
- 1-1/6 in
- Dimension - L Length Overall mm
- 66 mm
- Dimension - Outside Diameter inch
- 0.89 in
Dimension - B Length inch1.18 in
Dimension - Length Overall inch2.59 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Listed Direct Burial
- Yes
- Certification - cULus
- No
- UL Listed
- Yes
Certification - ETLNo
Certification - UL RecognizedNo
Standards - RoHS Compliance StatusEX
Conductor Related
- Conductor - Copper Str Size
- 4/0 AWG
Conductor - Copper Str Size Range4/0 AWG
General
- Application
- For Direct Burial In Earth Or Concrete
- Die Index
- 17
- Physical Attribute - Number of Crimps Required
- 2
- Plating Type
- Unplated
- Trade Name
- HYLINK™
- UPC
- 781810220474
Connector TypeSplice
MaterialCopper
PlatedN
Sub BrandHYLINK
TypeSplices
UPC 12 Digit7818102204744
Logistics
- Minimum Pack Quantity
- 1
