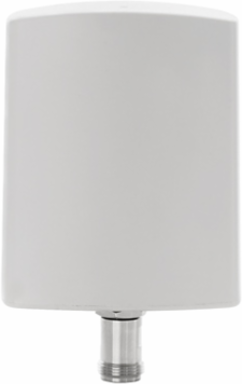

Weidmuller 1367140000 IE-ANT-P-ABG-75-9-NF
- MPN: 1367140000
- PPN: WDM-1367140000
CAD
$493.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Directional antenna, Dual Band (2.4 GHz / 5 GHz), Gain of 6 dBi, Vertical, 1x N-type female, bottom, IP67, Impedance: 50 Ω
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 80 mm
- Height
- 101 mm
- Depth
- 35 mm
- Net weight
- 120 g
Width (inches)3.15 inch
Height (inches)3.976 inch
Depth (inches)1.378 inch
Environmental Conditions
- Applications
- for indoor and outdoor use
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
Operating temperature, max.80 °C
Storage temperature, max.80 °C
Wind loadFrontal, Lateral, 7 N, @ 160 Km/h
Classifications
- ETIM 6.0
- EC001698
- eClass 9.0
- 19-07-01-05
- eClass 10.0
- 19-07-01-05
ETIM 7.0EC001698
eClass 9.119-07-01-05
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Technical Data
- 3dB beamwidth (horizontal)
- Band 1: 75°, Band 2: 55°
- Antenna gain
- Band 1: 9 dBi, Band 2: 9 dBi
- Frequency range
- Band 1: 2400 - 2500 (MHz), Band 2: 5150 - 5875 (MHz)
- Polarisation
- Vertical
- Standing wave ratio
- < 2
- Vertical electrical tilt
- Band 1: 0°, Band 2: 0°
3dB beamwidth (vertical)Band 1: 55°, Band 2: 55°
Composite power max.10 W
Impedance50 Ω
RadiationDirectional
Type of connection1x N-type female, bottom
front-to-back ratioBand 1: 15 dB, Band 2: 15 dB
Included In Delivery
- Included in delivery
- 1 x antenna, 1 x wall mounting
Enclosure Material
- Colour
- grey
Housing main materialPC
