Weidmuller 1421710100 IE-C5DB4WE0100A20A20-E
- MPN: 1421710100
- PPN: WDM-1421710100
CAD
$269.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

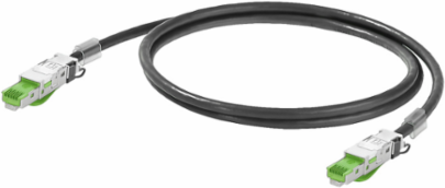

System cable, RJ45 IP 20 no tools needed, RJ45 IP 20 no tools needed, Cat.5 (ISO/IEC 11801), Radox GKW S, 10 m
Documentation & Downloads
Specifications

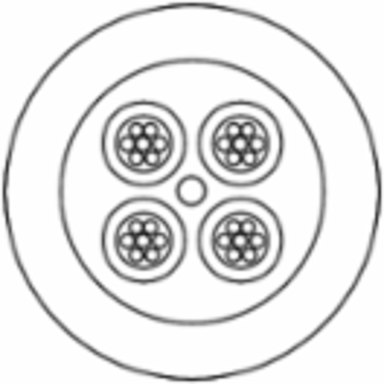

Cable Structure
- Strands
- 7
- Insulation cross-section
- 1.58 mm
- Material sheath
- Radox GKW S
- Sheath diameter, max.
- 7 mm
Cross-section2*2*AWG 22/7 - 2*2*0.36 mm²
ShieldingSF/UTP
Sheath diameter, min.6.2 mm
Sheathing colourblack
Approvals
- ROHS
- Conform
Mechanical And Material Properties Of Cable
- Min. bending radius, repetitive
- 6 *diameter
- Resistance to oils
- in accordance with EN 50306-3
- Corrosiveness of fumes
- to IEC 60754-2
Abrasion resistancevery good
Halogenhalogen-free, according to IEC 60754-2
Impervious to smokeAccording to BS 6853 Appendix D, in accordance with EN 50268-2, According to IEC 61034-2
Dimensions And Weights
- Length
- 10 m
- Net weight
- 810 g
Length (inches)0.394 inch
Insulation cross-section1.58 mm
Plug
- Connector left
- RJ45 IP 20 no tools needed
Connector rightRJ45 IP 20 no tools needed
Standards
- Fire safety for railway vehicles
- According to DIN 5510-2 fire safety levels 1,2,3,4, According to BS 6853, According to EN50288-2-2, According to EN 45545, HL1 - HL3
- Flames propagate vertically on bundled cables
- According to BS4066-3, DIN EN 50266-2-5, According to IEC 60332-3-25 D
- Corrosiveness of fumes
- to IEC 60754-2
- Poisonous gases
- According to BS 6853 Appendix B
- Multi-wire metallic data and control cable
- According to EN50288-2-2
Fire protection in busesAccording to ISO 6722-1 5.22 (UN ECE-R 118.01)
Impervious to smokeAccording to BS 6853 Appendix D, in accordance with EN 50268-2, According to IEC 61034-2
Hydrogen halide contentAccording to EN-50267-2-1, According to IEC 60754-1
Fluorine contentAccording to EN 60684-2 Section 45.2
Connector standardIEC 60603-7-51
Classifications
- ETIM 6.0
- EC002599
- eClass 9.0
- 27-06-03-08
- eClass 10.0
- 27-06-03-08
ETIM 7.0EC002599
eClass 9.127-06-03-08
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Electrical Properties Of Cable
- Category
- Cat.5 (ISO/IEC 11801)
Temperatures
- Operating temperature, max.
- 90 °C
- Storage temperature, max.
- 90 °C
- Operating temperature
- -40 °C...90 °C
Operating temperature, min.-40 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...90 °C
