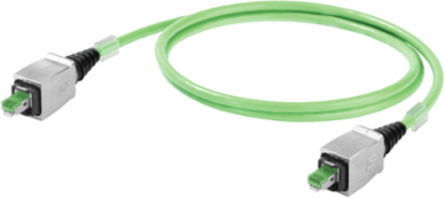

Weidmuller 1307610100 IE-C5DD4UG0100B2EB2E-X
- MPN: 1307610100
- PPN: WDM-1307610100
CAD
$212.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Dragline cable, PROFINET, RJ45 IP 67 PushPull moulded V14 metal, RJ45 IP 67 PushPull moulded V14 metal, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 10 m
Documentation & Downloads
Specifications
Electrical Properties
- Insulation strength
- 500,000 Ω
Cable Structure
- Sheath diameter
- 6.7 mm
- Standard designations
- 2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
- Cross-section
- 4*AWG 22/7 - 0.36 mm²
- Insulation cross-section
- 1.5 mm
- Number of wires
- 4
- Colour sequence or wires - wire pairs
- white, yellow, blue, orange
- Filler
- As central element
- Complete shielding
- Aluminium foil, Shielding braid made from copper wiring
- Overlap of shielding braid
- 85 %
- Sheath diameter, min.
- 6.3 mm
- Sheathing material thickness
- 0.9 mm
Wire materialStranded tin-plated copper wire
Strands7
InsulationPE
Wire core insulation thickness0.38 mm
Arrangement of wire coresStar-quad
Diameter of inner sheathing3.9 mm
ShieldingSF/UTP
Shielding braid thickness0.13 mm
Material sheathPUR
Sheath diameter, max.6.7 mm
Sheathing colourgreen (RAL 6018)
Approvals
- ROHS
- Conform
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 5 x cable diameter
- Bending cycles
- 3 Mio
- Speed
- 180 m/min
- Abrasion resistance
- very good
- Resistance to oils
- in accordance with IEC 60811-2-1
- Silicone-free
- Yes
- Fire propagation
- No
Min. bending radius, repetitive7.5 x cable diameter
Pulling force≤ 150 N
Acceleration4 m/s²
Resistance to spread of flamein accordance with IEC 60332-1
UV-resistantYes
Halogenhalogen-free, according to IEC 60754-2
Dimensions And Weights
- Length
- 10 m
- Net weight
- 732 g
Length (inches)0.394 inch
Insulation cross-section1.5 mm
Plug
- Connector left
- RJ45 IP 67 PushPull moulded V14 metal
Connector rightRJ45 IP 67 PushPull moulded V14 metal
Standards
- Connector standard
- IEC 61076-3-117 Var. 14
- Standard, wire material
- DIN EN 13602 Cu-ETP-A
Standard, insulating materialDIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding materialDIN EN 13602 Cu-ETP-A..B
Classifications
- ETIM 6.0
- EC002599
- eClass 9.0
- 27-06-03-08
- eClass 10.0
- 27-06-03-08
ETIM 7.0EC002599
eClass 9.127-06-03-08
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Electrical Properties Of Cable
- Category
- Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
- Test voltage: wire-wire-shield
- 2000 Veff, 50 Hz, 1 min
- Loop resistance
- 120 Ω/km
- Resistance differential
- 3 %
- Insulation strength
- 500,000 Ω
- Signal propagation time
- 5.3 ns/m
Operating voltage (UL rating)600 V undefined
Characteristic impedance100 ± 15 Ω at 1–100 MHz
Deviation40 ns/100m
Transfer impedance20 mΩ/m at 10 MHz
Capacity at 1 kHz52 nF/km
Speed180 m/min
Temperatures
- Operating temperature, max.
- 70 °C
- Storage temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
- Installation temperature
- -20 °C...60 °C
Operating temperature, min.-40 °C
Storage temperature, min.-50 °C
Storage temperature-50 °C...70 °C
