Weidmuller 1025940150 IE-C5DD4UG0150MCSXXX-X
- MPN: 1025940150
- PPN: WDM-1025940150
CAD
$136.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

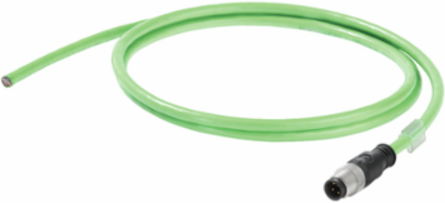

Dragline cable, PROFINET, M12 D-code – IP 67 straight pin, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 15 m
Documentation & Downloads
Specifications
Electrical Properties
- Insulation strength
- 500,000 Ω
Cable Structure
- Wire material
- Stranded tin-plated copper wire
- Strands
- 7
- Insulation
- PE
- Wire core insulation thickness
- 0.38 mm
- Arrangement of wire cores
- Star-quad
- Diameter of inner sheathing
- 3.9 mm
- Shielding
- SF/UTP
- Shielding braid thickness
- 0.13 mm
- Material sheath
- PUR
- Sheath diameter, max.
- 6.7 mm
- Sheathing colour
- green (RAL 6018)
Standard designations2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
Cross-section4*AWG 22/7 - 0.36 mm²
Insulation cross-section1.5 mm
Number of wires4
Colour sequence or wires - wire pairswhite, yellow, blue, orange
FillerAs central element
Complete shieldingAluminium foil, Shielding braid made from copper wiring
Overlap of shielding braid85 %
Sheath diameter, min.6.3 mm
Sheathing material thickness0.9 mm
Approvals
- ROHS
- Conform
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 5 x cable diameter
- Bending cycles
- 3 Mio
- Speed
- 180 m/min
- Abrasion resistance
- very good
- Resistance to oils
- in accordance with IEC 60811-2-1
- Silicone-free
- Yes
- Fire propagation
- No
Min. bending radius, repetitive7.5 x cable diameter
Pulling force≤ 150 N
Acceleration4 m/s²
Resistance to spread of flamein accordance with IEC 60332-1
UV-resistantYes
Halogenhalogen-free, according to IEC 60754-2
Dimensions And Weights
- Length
- 15 m
- Net weight
- 940 g
Length (inches)0.591 inch
Insulation cross-section1.5 mm
Plug
- Connector left
- M12 D-code – IP 67 straight pin
Connector rightOpen
Standards
- Standard, insulating material
- DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
- Standard, shielding material
- DIN EN 13602 Cu-ETP-A..B
Standard, wire materialDIN EN 13602 Cu-ETP-A
Classifications
- ETIM 6.0
- EC002599
- eClass 9.0
- 27-06-03-08
- eClass 10.0
- 27-06-03-08
ETIM 7.0EC002599
eClass 9.127-06-03-08
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Electrical Properties Of Cable
- Category
- Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
- Test voltage: wire-wire-shield
- 2000 Veff, 50 Hz, 1 min
- Loop resistance
- 120 Ω/km
- Resistance differential
- 3 %
- Insulation strength
- 500,000 Ω
- Signal propagation time
- 5.3 ns/m
Operating voltage (UL rating)600 V undefined
Characteristic impedance100 ± 15 Ω at 1–100 MHz
Deviation40 ns/100m
Transfer impedance20 mΩ/m at 10 MHz
Capacity at 1 kHz52 nF/km
Speed180 m/min
Temperatures
- Operating temperature, max.
- 70 °C
- Storage temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
- Installation temperature
- -20 °C...60 °C
Operating temperature, min.-40 °C
Storage temperature, min.-50 °C
Storage temperature-50 °C...70 °C
