Weidmuller 1234770010 IE-C5DS4UG0010MBSXXX-E
- MPN: 1234770010
- PPN: WDM-1234770010
CAD
$53.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

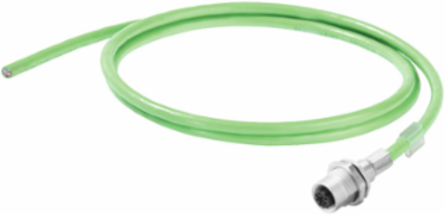

System cable, M12 D-code – flange, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 1 m
Documentation & Downloads
Specifications
Cable Structure
| Cross-section | 4*AWG 22/7 - 0.36 mm² |
|---|---|
| Shielding | 360° shield contact |
| Sheath diameter, max. | 6.7 mm |
| Insulation cross-section | 1.5 mm |
|---|---|
| Material sheath | PUR |
| Sheathing colour | green (RAL 6018) |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 5 x cable diameter |
|---|
| Min. bending radius, repetitive | 15 x cable diameter |
|---|

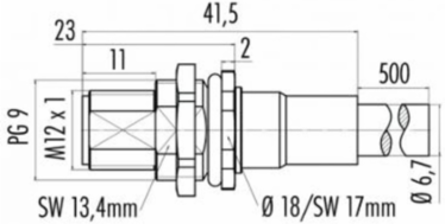

Dimensions And Weights
| Length | 1 m |
|---|---|
| Net weight | 81 g |
| Length (inches) | 0.039 inch |
|---|---|
| Insulation cross-section | 1.5 mm |
Plug
| Connector left | M12 D-code – flange |
|---|
| Connector right | Open |
|---|
Classifications
| ETIM 6.0 | EC002599 |
|---|---|
| eClass 9.0 | 27-06-03-08 |
| eClass 10.0 | 27-06-03-08 |
| ETIM 7.0 | EC002599 |
|---|---|
| eClass 9.1 | 27-06-03-08 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Electrical Properties Of Cable
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | -40 °C...70 °C |
| Installation temperature | -20 °C...60 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -50 °C |
| Storage temperature | -50 °C...70 °C |
