Weidmuller 1234750050 IE-C5DS4UG0050MBSA20-E
- MPN: 1234750050
- PPN: WDM-1234750050
CAD
$103.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

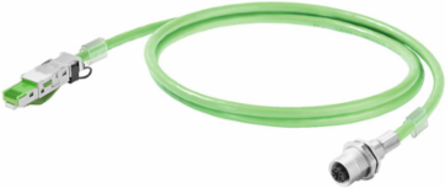

System cable, M12 D-code – flange, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 5 m
Documentation & Downloads
Specifications
Cable Structure
- Cross-section
- 4*AWG 22/7 - 0.36 mm²
- Shielding
- 360° shield contact
- Sheath diameter, max.
- 6.7 mm
Insulation cross-section1.5 mm
Material sheathPUR
Sheathing colourgreen (RAL 6018)
Approvals
- ROHS
- Conform
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 5 x cable diameter
Min. bending radius, repetitive15 x cable diameter
Dimensions And Weights
- Length
- 5 m
- Net weight
- 346 g
Length (inches)0.197 inch
Insulation cross-section1.5 mm
Plug
- Connector left
- M12 D-code – flange
Connector rightRJ45 IP 20
Classifications
- ETIM 6.0
- EC002599
- eClass 9.0
- 27-06-03-08
- eClass 10.0
- 27-06-03-08
ETIM 7.0EC002599
eClass 9.127-06-03-08
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Electrical Properties Of Cable
- Category
- Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Temperatures
- Operating temperature, max.
- 70 °C
- Storage temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
- Installation temperature
- -20 °C...60 °C
Operating temperature, min.-40 °C
Storage temperature, min.-50 °C
Storage temperature-50 °C...70 °C
