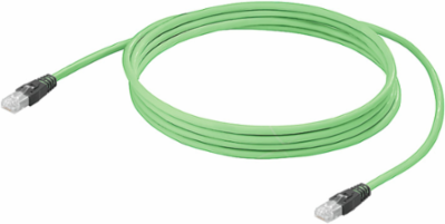

Weidmuller 1522100020 IE-C5DS4VG0020A60A60-E
- MPN: 1522100020
- PPN: WDM-1522100020
CAD
$46.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PVC, 2 m
Documentation & Downloads
Specifications
Electrical Properties
- Insulation strength
- 500,000 Ω
Cable Structure
- Wire material
- Stranded tin-plated copper wire
- Strands
- 7
- Insulation
- PE
- Number of wires
- 4
- Colour sequence or wires - wire pairs
- white, yellow, blue, orange
- Filler
- As central element
- Complete shielding
- Aluminium foil, Shielding braid made from copper wiring
- Overlap of shielding braid
- 85 %
- Sheath diameter, min.
- 6.3 mm
- Sheathing material thickness
- 0.9 mm
Standard designations2YY(ST)CY 2x2x0,75/1,5-100 LI VZN GN
Cross-section4*AWG 22/7 - 0.36 mm²
Insulation cross-section1.5 mm
Arrangement of wire coresStar-quad
Diameter of inner sheathing3.9 mm
ShieldingSF/UTP
Shielding braid thickness0.13 mm
Material sheathPVC
Sheath diameter, max.6.7 mm
Sheathing colourgreen (RAL 6018)
Approvals
- ROHS
- Conform
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 3.5 *diameter
- Abrasion resistance
- good
Min. bending radius, repetitive7.5 x cable diameter
Resistance to spread of flamein accordance with IEC 60332-1 / UL 1685
Dimensions And Weights
- Length
- 2 m
- Net weight
- 145 g
Length (inches)0.079 inch
Insulation cross-section1.5 mm
Plug
- Connector left
- RJ45 IP 20
Connector rightRJ45 IP 20
Standards
- Standard, assembly
- UL-Style 21694
- Standard, wire material
- DIN EN 13602 Cu-ETP-A
Standard, insulating materialDIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding materialDIN EN 13602 Cu-ETP-A..B
Classifications
- ETIM 6.0
- EC002599
- eClass 9.0
- 27-06-03-08
- eClass 10.0
- 27-06-03-08
ETIM 7.0EC002599
eClass 9.127-06-03-08
UNSPSC26-12-16-06
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Electrical Properties Of Cable
- Category
- Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
- Test voltage: wire-wire-shield
- 2000 Veff, 50 Hz, 1 min
- Loop resistance
- 120 Ω/km
- Insulation strength
- 500,000 Ω
Operating voltage (UL rating)600 V undefined
Characteristic impedance100 ± 15 Ω at 1–100 MHz
Transfer impedance20 mΩ/m at 10 MHz
Signal propagation time5.3 ns/m
Temperatures
- Operating temperature, max.
- 70 °C
- Storage temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
- Installation temperature
- -20 °C...60 °C
Operating temperature, min.-40 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...70 °C
