Weidmuller 1166000003 IE-C5ES8UG0003M40M40-G
- MPN: 1166000003
- PPN: WDM-1166000003
CAD
$8.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

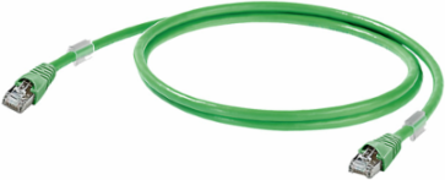

System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801), PUR, 0.3 m
Documentation & Downloads
Specifications
Cable Structure
| Wire material | Stranded tin-plated copper wire |
|---|---|
| Cross-section | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Insulation cross-section | 0.98 mm |
| Arrangement of wire cores | Twisted pair |

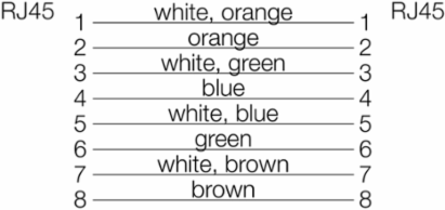

| Colour sequence or wires - wire pairs | white/blue - blue, white/orange - orange, white/green - green, white/brown - brown |
| Material sheath | PUR |
| Sheath diameter, max. | 6 mm |
| Strands | 7 |
|---|---|
| Insulation | PE |
| Number of wires | 8 |
| Wire pair shielding | Aluminium foil |
| Complete shielding | Shielding braid made from copper wiring |
| Sheath diameter, min. | 5.6 mm |
| Sheathing colour | green (RAL 6018) |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 5 x cable diameter |
|---|---|
| Abrasion resistance | very good |
| Resistance to oils | EN 50305 |
| Halogen | halogen-free, according to IEC 60754-2 |
| Min. bending radius, repetitive | 10 x cable diameter |
|---|---|
| Resistance to spread of flame | in accordance with IEC 60332-1 |
| Silicone-free | Yes |
Dimensions And Weights
| Length | 0.3 m |
|---|---|
| Net weight | 30 g |
| Length (inches) | 0.012 inch |
|---|---|
| Insulation cross-section | 0.98 mm |
Plug
| Connector left | RJ45 IP 20 |
|---|
| Connector right | RJ45 IP 20 |
|---|
Classifications
| ETIM 6.0 | EC002599 |
|---|---|
| eClass 9.0 | 27-06-03-08 |
| eClass 10.0 | 27-06-03-08 |
| ETIM 7.0 | EC002599 |
|---|---|
| eClass 9.1 | 27-06-03-08 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Electrical Properties Of Cable
| Category | Cat.5 (ISO/IEC 11801) |
|---|
| Test voltage: wire-wire-shield | 750 V DC, 1 min |
|---|
Temperatures
| Operating temperature, max. | 75 °C |
|---|---|
| Operating temperature | -40 °C...75 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Installation temperature | -10 °C...60 °C |
