Weidmuller 1166020250 IE-C5ES8VG0250M40M40-G
- MPN: 1166020250
- PPN: WDM-1166020250
CAD
$84.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

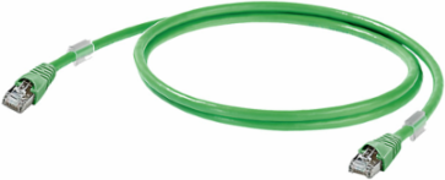

System cable, RJ45 IP 20, RJ45 IP 20, Cat.5 (ISO/IEC 11801), PVC, 25 m
Specifications
Electrical Properties
| Insulation strength | 5000 MΩ |
|---|---|
| PoE / PoE+ | conforming to IEEE 802.3at |
| Operating voltage | 100 V |
|---|
Cable Structure
| Wire material | Stranded tin-plated copper wire |
|---|---|
| Strands | 7 |
| Insulation | PE |
| Wire core insulation thickness | 0.25 mm |
| Arrangement of wire cores | Twisted pair |
| Wire pair shielding | Aluminium foil, Plastic foil |
| Shielding | SF/UTP |
| Shielding braid thickness | 0.1 mm |
| Material sheath | PVC |
| Sheath diameter, max. | 5.8 mm |
| Sheathing colour | green (RAL 6018) |
| Standard designations | LI02YSCY 4X2X0.15 PIMF GN, SF/UTP |
|---|---|
| Cross-section | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Insulation cross-section | 0.98 mm |
| Number of wires | 8 |
| Diameter of wire pair | 2.4 mm |

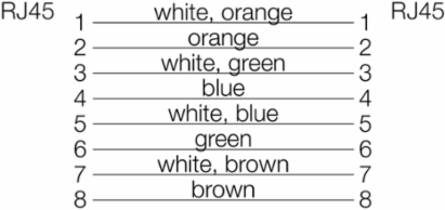

| Colour sequence or wires - wire pairs | white/blue - blue, white/orange - orange, white/green - green, white/brown - brown |
| Complete shielding | Shielding braid made from copper wiring |
| Overlap of shielding braid | 70 % |
| Sheath diameter, min. | 5.4 mm |
| Sheathing material thickness | 0.5 mm |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 5 x cable diameter |
|---|---|
| Abrasion resistance | good |
| Min. bending radius, repetitive | 10 x cable diameter |
|---|---|
| Resistance to spread of flame | in accordance with IEC 60332-1 |
Dimensions And Weights
| Length | 25 m |
|---|---|
| Net weight | 959 g |
| Length (inches) | 0.984 inch |
|---|---|
| Insulation cross-section | 0.98 mm |
Plug
| Connector left | RJ45 IP 20 |
|---|
| Connector right | RJ45 IP 20 |
|---|
Standards
| Generic communication cable facilities | ISO / IEC 11801:2002, EN 50173-1:2007 |
|---|---|
| Standard, insulating material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
| Standard, shielding material | DIN EN 13602 Cu-ETP-A..B |
| Standard, assembly | UL-Style 2879 (80°C/30V) |
|---|---|
| Standard, wire material | DIN EN 13602 Cu-ETP-A |
Classifications
| UNSPSC | 26-12-16-06 |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Electrical Properties Of Cable
| Category | Cat.5 (ISO/IEC 11801) |
|---|---|
| Operating voltage (UL rating) | 30 V undefined |
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Deviation | 25 ns/100m |
| Transfer impedance | 15 mΩ/m at 1 MHz, 20 mΩ/m at 10 MHz, 30 mΩ/m at 30 MHz |
| Insulation strength | 5000 MΩ |
| Signal propagation time | 5.13 ns/m |
| Operating voltage | 100 V |
|---|---|
| Test voltage: wire-wire-shield | 750 V DC, 1 min |
| Loop resistance | 150 Ω/km |
| Resistance differential | 3 % |
| Shield attenuation | 55 dB at 30–600 MHz |
| Capacity at 1 kHz | 48 nF/km |
Temperatures
| Operating temperature, max. | 75 °C |
|---|---|
| Operating temperature | -40 °C...75 °C |
| Operating temperature, min. | -40 °C |
|---|
