Weidmuller 1463640200 IE-C6EL8UG0200XCSXCS-E
- MPN: 1463640200
- PPN: WDM-1463640200
CAD
$341.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

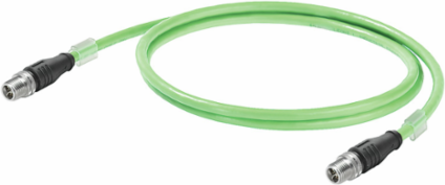

System cable, M12 X-type IP 67 straight male, M12 X-type IP 67 straight male, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 20 m
Documentation & Downloads
Specifications
Cable Structure

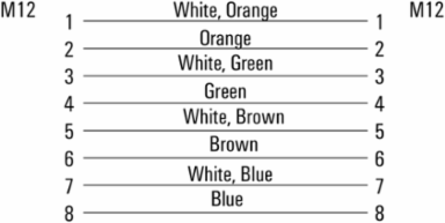

| Copper diameter | 0.48 µm |
|---|---|
| Wire material | Stranded tin-plated copper wire |
| Strands | 7 |
| Insulation | PE |
| Number of wires | 8 |
| Wire pair shielding | Aluminium foil |
| Shielding | S/FTP |
| Shielding braid thickness | 0.1 mm |
| Sheath diameter, min. | 6.1 mm |
| Sheathing colour | green (RAL 6018) |
| Wiring | EIA/TIA T568 B |
|---|---|
| Standard designations | S/FTP, LIO2YSC11Y 4x2x0.15 PIMF FRNC GN |
| Cross-section | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Insulation cross-section | 0.98 mm |
| Arrangement of wire cores | Twisted pair |
| Colour sequence or wires - wire pairs | white - blue, white - orange, white - green, white - brown |
| Complete shielding | Shielding braid made from copper wiring |
| Material sheath | PUR |
| Sheath diameter, max. | 6.7 mm |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 5 x cable diameter |
|---|---|
| Abrasion resistance | very good |
| Resistance to oils | in accordance with IEC 60811-2-1 |
| Impervious to smoke | According to IEC 61034 |
| Min. bending radius, repetitive | 10 x cable diameter |
|---|---|
| Resistance to spread of flame | in accordance with IEC 60332-1-2 |
| Halogen | halogen-free, according to IEC 60754-1 |
Dimensions And Weights
| Length | 20 m |
|---|---|
| Net weight | 800 g |
| Length (inches) | 0.787 inch |
|---|---|
| Insulation cross-section | 0.98 mm |

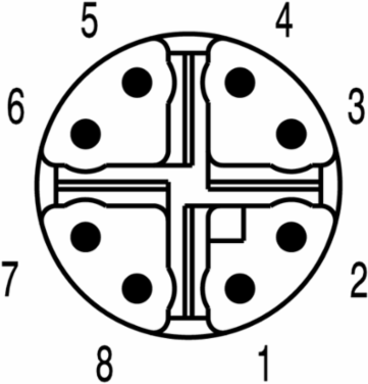

Plug
| Connector left | M12 X-type IP 67 straight male |
|---|
| Connector right | M12 X-type IP 67 straight male |
|---|
Standards
| Impervious to smoke | According to IEC 61034 |
|---|
| Standard, assembly | UL Style 20963 |
|---|
Classifications
| ETIM 6.0 | EC002599 |
|---|---|
| eClass 9.0 | 27-06-03-08 |
| eClass 10.0 | 27-06-03-08 |
| ETIM 7.0 | EC002599 |
|---|---|
| eClass 9.1 | 27-06-03-08 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Electrical Properties Of Cable
| Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |
|---|---|
| Characteristic impedance | 100 ± 5 Ω at 100MHz |
| Transfer impedance | 15 mΩ/m at 1 MHz, 10 mΩ/m at 10 MHz, 30 mΩ/m at 30 MHz |
| Test voltage: wire-wire-shield | 700 Vrms, 50 Hz, 1 min |
|---|---|
| Loop resistance | 290 Ω/km |
| Signal propagation time | 5.2 ns/m |
Temperatures
| Operating temperature, max. | 80 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -40 °C...80 °C |
| Installation temperature | -20 °C...60 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
