Weidmuller 1251590005 IE-C6FP8LG0005M40M40-G
- MPN: 1251590005
- PPN: WDM-1251590005
CAD
$7.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

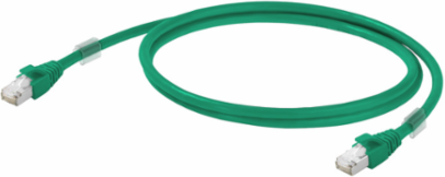

Patch cable, RJ45 IP 20, RJ45 IP 20, Cat.6A / Class EA (ISO/IEC 11801 2010), LSZH, 0.5 m
Documentation & Downloads
Specifications
Electrical Properties
| Current-carrying capacity at 50 °C | 1 A |
|---|---|
| PoE / PoE+ | conforming to IEEE 802.3at |
| Operating voltage | 48 V AC / DC |
|---|
Cable Structure
| Copper diameter | 0.43 mm |
|---|---|
| Cross-section | 4*2*AWG 27/7 - 4*2*0.1 mm² |
| Insulation cross-section | 1.04 mm |
| Arrangement of wire cores | Twisted pair |
| Shielding | S/FTP |
| Overlap of shielding braid | 60 % |
| Sheath diameter, min. | 5.5 mm |
| Strands | 7 |
|---|---|
| Insulation | PE |
| Number of wires | 8 |

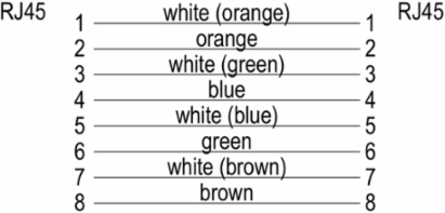

| Colour sequence or wires - wire pairs | white - blue, white - orange, white - green, white - brown |
| Complete shielding | Shielding braid made from copper wiring |
| Material sheath | LSZH |
| Sheath diameter, max. | 5.9 mm |
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E316369 |
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Colour | green |
|---|---|
| Min. bending radius, repetitive | 50 mm |
| Resistance to spread of flame | in accordance with IEC 60332-1 / UL 1581 FT2 |
| Min. bending radius, once only | 25 mm |
|---|---|
| Speed | 10 GBit/s |
| Halogen | halogen-free, according to IEC 60754-2 |
Dimensions And Weights
| Length | 0.5 m |
|---|---|
| Net weight | 35 g |
| Length (inches) | 0.02 inch |
|---|---|
| Insulation cross-section | 1.04 mm |
Plug
| Connector left | RJ45 IP 20 |
|---|
| Connector right | RJ45 IP 20 |
|---|
Standards
| Application-specific communication cable facilities | ANSI / TIA / EIA-568-B.2-10, ISO / IEC 11801:2002, EN50173-1:2007 |
|---|---|
| Certificate no. (cULus) | E316369 |
| Connector standard | IEC 60603-7-51 |
|---|
Classifications
| ETIM 6.0 | EC002599 |
|---|---|
| eClass 9.0 | 27-06-03-08 |
| eClass 10.0 | 27-06-03-08 |
| ETIM 7.0 | EC002599 |
|---|---|
| eClass 9.1 | 27-06-03-08 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Electrical Properties Of Cable
| Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |
|---|---|
| Operating voltage (UL rating) | 30 V AC / 42.4 V DC |
| Characteristic impedance | 100 ± 15 Ω at 1–100 MHz |
| Resistance differential | 5 % |
| Speed | 10 GBit/s |
| Shield attenuation up to 1000 MHz | 60 dB |
| Separating class according to EN 50174-2 | d |
| Operating voltage | 48 V AC / DC |
|---|---|
| Test voltage: wire-wire-shield | 750 V DC, 1 min |
| Deviation | 25 ns/100m |
| Capacity at 1 kHz | 46 nF/km |
| Coupling resistance at 10 MHz | 5 mΩ/m |
| Coupling attenuation up to 1000 MHz | 80 dB |
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 60 °C |
| Operating temperature | -20 °C...60 °C |
| Installation temperature | 0 °C...50 °C |
| Operating temperature, min. | -20 °C |
|---|---|
| Storage temperature, min. | -20 °C |
| Storage temperature | -20 °C...60 °C |
Plug, Right
| Contact surface | Au ≥ 0.8 µm |
|---|
