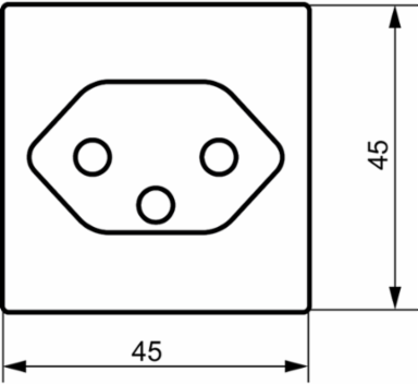

Weidmuller 1450780000 IE-FCI-PWB-CH
- MPN: 1450780000
- PPN: WDM-1450780000
CAD
$56.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

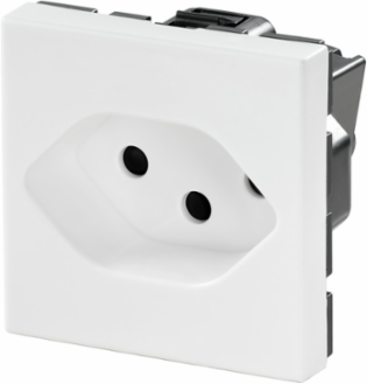

FrontCom, Insert Power large, Type J, Socket connector, CH
Documentation & Downloads
Specifications
General Data
| Connector face | Type J |
|---|---|
| Protection degree | IP20 |
| Insert type | Insert Power large |
|---|
Approvals
| Approvals | DNV GL |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Weight | 25 g |
|---|
| Net weight | 25.912 g |
|---|
Standards
| Certificate No. (GERMLLOYD) | 13866-15 |
|---|
Clampable Conductors
| Conductor connection cross-section, extremely flexible with wire end ferrule | 1.5 ... 1.5 mm² |
|---|---|
| Conductor connection cross-section, flexible with wire end ferrule | 1.5 ... 1.5 mm² |
| Conductor connection cross-section, rigid | 1.5 ... 2.5 mm² |
| Type of connection | PUSH IN |
| Conductor connection cross-section, extremely flexible without wire end ferrule | 1.5 ... 2.5 mm² |
|---|---|
| Conductor connection cross-section, flexible without wire end ferrule | 1.5 ... 2.5 mm² |
| Stripping length | 10 mm |
Classifications
| ETIM 6.0 | EC001121 |
|---|---|
| eClass 9.0 | 27-44-03-90 |
| eClass 10.0 | 27-44-03-90 |
| ETIM 7.0 | EC001121 |
|---|---|
| eClass 9.1 | 27-18-90-90 |
| UNSPSC | 31-16-23-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Housing main material | Polycarbonate PC |
|---|---|
| Rated voltage (AC) | 250 V |
| Rated current | 10 A |
|---|
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 70 °C |
| Operating temperature | -5 °C...50 °C |
| Operating temperature, min. | -5 °C |
|---|---|
| Storage temperature, min. | -10 °C |
| Storage temperature | -10 °C...70 °C |
