Weidmuller 1433970100 IE-FM5Z2LO0010MSD0SD0-X
Weidmuller 1433970100 IE-FM5Z2LO0010MSD0SD0-X
- MPN: 1433970100
- PPN: WDM-1433970100
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$46.90/ EA
Description

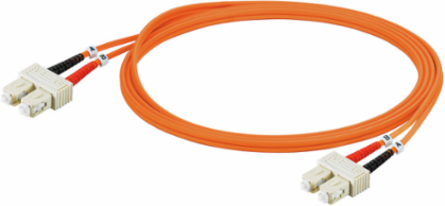

Patch cable, duplex clip included, SC duplex IP 20, SC duplex IP 20, 50 µm, LSZH, 10 m
Specifications
Cable Structure
- Core diameter
- 50 µm
- Cable layout
- ZIPCORD
- Material sheath
- LSZH
Sheath diameter2.8 * 5.7 mm
Standard designationsI-V(ZN)H
Sheathing colourorange
Approvals
- ROHS
- Conform
Mechanical And Material Properties Of Cable
- Min. bending radius, once only
- 28 mm
- Halogen
- No
Min. bending radius, repetitive56 mm
Dimensions And Weights
- Length
- 10 m
- Net weight
- 100 g
Length (inches)0.394 inch
Plug
- Connector left
- SC duplex IP 20
Connector rightSC duplex IP 20
Standards
- Connector standard
- IEC 61754-4
Classifications
- ETIM 6.0
- EC002607
- eClass 9.0
- 27-06-10-03
- eClass 10.0
- 27-06-10-03
ETIM 7.0EC002607
eClass 9.127-06-10-03
Fibre-Optic
- Attenuation
- ≤ 2.7 dB/km at 850 nm, ≤0.8 dB/km at 1300 nm
- Fibre type
- GOF, Multimode, OM2
Bandwidth≥ 600 MHz*km at 850 nm, ≥ 600 MHz*km at 1300 nm
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature
- -20 °C...70 °C
Operating temperature, min.-20 °C
