Weidmuller 1433980050 IE-FM6Z2LO0005MST0ST0-X
- MPN: 1433980050
- PPN: WDM-1433980050
CAD
$36.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

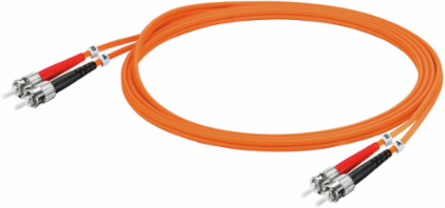

Patch cable, ST IP 20, ST IP 20, 62.5 µm, LSZH, 5 m
Documentation & Downloads
Specifications
Cable Structure
| Core diameter | 62.5 µm |
|---|---|

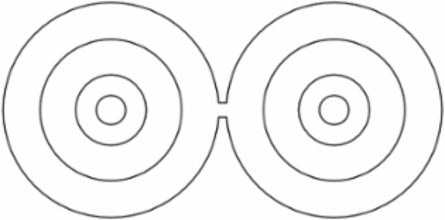

| Cable layout | ZIPCORD |
| Material sheath | LSZH |
| Sheath diameter | 2.8 * 5.7 mm |
|---|---|
| Standard designations | I-V(ZN)H |
| Sheathing colour | orange |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 28 mm |
|---|---|
| Halogen | No |
| Min. bending radius, repetitive | 56 mm |
|---|
Dimensions And Weights
| Length | 5 m |
|---|---|
| Net weight | 88 g |
| Length (inches) | 0.197 inch |
|---|
Plug
| Connector left | ST IP 20 |
|---|
| Connector right | ST IP 20 |
|---|
Standards
| Connector standard | IEC 60874-10 |
|---|
Classifications
| ETIM 6.0 | EC002607 |
|---|---|
| eClass 9.0 | 27-06-10-03 |
| eClass 10.0 | 27-06-10-03 |
| ETIM 7.0 | EC002607 |
|---|---|
| eClass 9.1 | 27-06-10-03 |
Fibre-Optic
| Attenuation | ≤ 3.0 dB/km at 850 nm, ≤0.8 dB/km at 1300 nm |
|---|---|
| Fibre type | GOF, Multimode, OM1 |
| Bandwidth | ≥ 200 MHz*km at 850 nm, ≥ 600 MHz*km at 1300 nm |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -20 °C...70 °C |
| Operating temperature, min. | -20 °C |
|---|
