Weidmuller 8813280000 IE-FM6Z2VO0002MST0ST0X
- MPN: 8813280000
- PPN: WDM-8813280000
CAD
$46.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

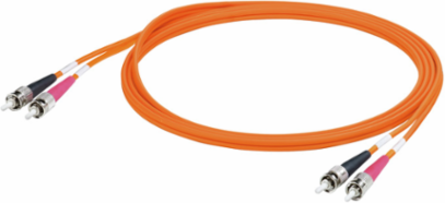

Patch cable, ST, ST IP 20, 62.5 µm, PVC, 2 m
Documentation & Downloads
Specifications
Cable Structure
| Core diameter | 62.5 µm |
|---|---|

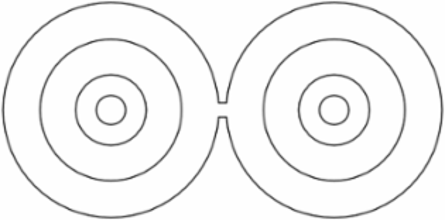

| Cable layout | ZIPCORD |
| Material sheath | PVC |
| Sheath diameter | 3*6 mm |
|---|---|
| Standard designations | I-V(ZN)Y |
| Sheathing colour | orange |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 30 mm |
|---|
| Min. bending radius, repetitive | 60 mm |
|---|
Dimensions And Weights
| Length | 2 m |
|---|---|
| Net weight | 49 g |
| Length (inches) | 0.079 inch |
|---|
Plug
| Connector left | ST |
|---|
| Connector right | ST IP 20 |
|---|
Standards
| Connector standard | IEC 61754-2 |
|---|
Classifications
| ETIM 6.0 | EC002607 |
|---|---|
| eClass 9.0 | 27-06-10-03 |
| eClass 10.0 | 27-06-10-03 |
| ETIM 7.0 | EC002607 |
|---|---|
| eClass 9.1 | 27-06-10-03 |
| UNSPSC | 30-21-18-01 |
Fibre-Optic
| Attenuation | ≤ 3.2 dB/km at 850 nm, ≤ 0.9 dB/km at 1300 nm |
|---|---|
| Fibre type | GOF, Multimode, OM1 |
| Bandwidth | ≥ 250 MHz*km at 850 nm, ≥ 600 MHz*km at 1300 nm |
|---|
Temperatures
| Operating temperature, max. | 75 °C |
|---|---|
| Storage temperature, max. | 75 °C |
| Operating temperature | -5 °C...75 °C |
| Installation temperature | -5 °C...50 °C |
| Operating temperature, min. | -5 °C |
|---|---|
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...75 °C |
