Weidmuller 1273430050 IE-FPOZ2EE0005MSJ0SJ0-X
- MPN: 1273430050
- PPN: WDM-1273430050
CAD
$102.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

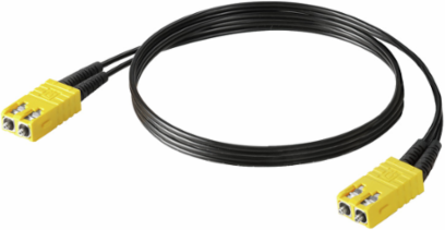

Connecting line, PROFINET, SCRJ IP 20, SCRJ IP 20, 980 µm, 5 m
Documentation & Downloads
Specifications
Cable Structure
| Core diameter | 980 µm |
|---|---|

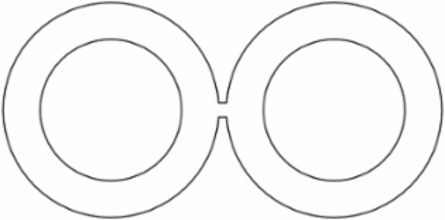

| Cable layout | ZIPCORD |
| Number of wires | 2 |
| Sheath diameter | 2.2*4.5 mm |
|---|---|
| Insulation | PE |
| Sheathing colour | black |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 25 mm |
|---|---|
| Bending cycles | 10.000 |
| Halogen | No |
| Min. bending radius, repetitive | 25 mm |
|---|---|
| Pulling force | ≤ 160 N |
Dimensions And Weights
| Length | 5 m |
|---|---|
| Net weight | 62 g |
| Length (inches) | 0.197 inch |
|---|
Plug
| Connector left | SCRJ IP 20 |
|---|
| Connector right | SCRJ IP 20 |
|---|
Classifications
| ETIM 6.0 | EC002607 |
|---|---|
| eClass 9.0 | 27-06-10-03 |
| eClass 10.0 | 27-06-10-03 |
| ETIM 7.0 | EC002607 |
|---|---|
| eClass 9.1 | 27-06-10-03 |
Fibre-Optic
| Attenuation | ≤ 160 dB/km at 650 nm |
|---|---|
| Fibre type | POF |
| Bandwidth | ≥ 100 MHz*km at 650 nm |
|---|---|
| Insertion loss | ≤ 1.0 dB |
Temperatures
| Operating temperature, max. | 80 °C |
|---|---|
| Operating temperature | -20 °C...80 °C |
| Operating temperature, min. | -20 °C |
|---|
