Weidmuller 1449420100 IE-FSMD2UE0010MSDESDEX
- MPN: 1449420100
- PPN: WDM-1449420100
CAD
$297.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

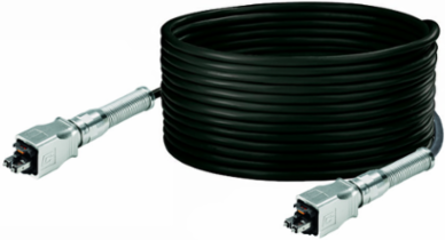

Dragline cable, SC IP 67 PushPull V14 metal, SC IP 67 PushPull V14 metal, 9 µm, PUR, 10 m
Documentation & Downloads
Specifications

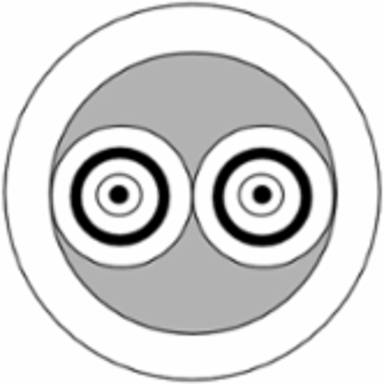

Cable Structure
| Core diameter | 9 µm |
|---|---|
| Cable layout | Break-out dragline |
| Sheathing colour | black |
| Sheath diameter | 6 mm |
|---|---|
| Material sheath | PUR |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 25 mm |
|---|---|
| Bending cycles | 100,000 |
| Min. bending radius, repetitive | 77 mm |
|---|
Dimensions And Weights
| Length | 10 m |
|---|---|
| Net weight | 0.01 g |
| Length (inches) | 0.394 inch |
|---|
Plug
| Connector left | SC IP 67 PushPull V14 metal |
|---|
| Connector right | SC IP 67 PushPull V14 metal |
|---|
Classifications
| ETIM 6.0 | EC002607 |
|---|---|
| eClass 9.0 | 27-06-10-03 |
| eClass 10.0 | 27-06-10-03 |
| ETIM 7.0 | EC002607 |
|---|---|
| eClass 9.1 | 27-06-10-03 |
Fibre-Optic
| Attenuation | ≤0.4 dB/km at 1310 nm |
|---|
| Fibre type | Singlemode, OS 2 |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 80 °C |
|---|---|
| Storage temperature, max. | 80 °C |
| Operating temperature | -40 °C...80 °C |
| Installation temperature | -20 °C...60 °C |
| Operating temperature, min. | -40 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...80 °C |
