Weidmuller 1433950010 IE-FSMZ2LY0001MLD0LD0-X
- MPN: 1433950010
- PPN: WDM-1433950010
CAD
$53.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

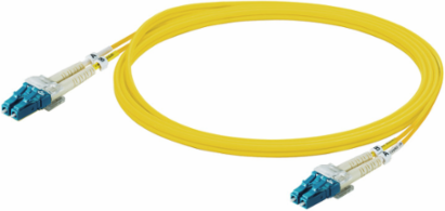

Patch cable, duplex clip included, LC-Duplex IP 20, LC-Duplex IP 20, 9 µm, LSZH, 1 m
Documentation & Downloads
Specifications
Cable Structure
| Core diameter | 9 µm |
|---|---|

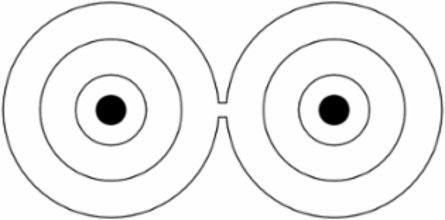

| Cable layout | ZIPCORD |
| Material sheath | LSZH |
| Sheath diameter | 2.0 * 4.1 mm |
|---|---|
| Standard designations | I-V(ZN)H |
| Sheathing colour | yellow |
Approvals
| ROHS | Conform |
|---|
Mechanical And Material Properties Of Cable
| Min. bending radius, once only | 20 mm |
|---|---|
| Halogen | No |
| Min. bending radius, repetitive | 40 mm |
|---|
Dimensions And Weights
| Length | 1 m |
|---|---|
| Net weight | 24 g |
| Length (inches) | 0.039 inch |
|---|
Plug
| Connector left | LC-Duplex IP 20 |
|---|
| Connector right | LC-Duplex IP 20 |
|---|
Standards
| Connector standard | IEC 61754-20 |
|---|
Classifications
| ETIM 6.0 | EC002607 |
|---|---|
| eClass 9.0 | 27-06-10-03 |
| eClass 10.0 | 27-06-10-03 |
| ETIM 7.0 | EC002607 |
|---|---|
| eClass 9.1 | 27-06-10-03 |
Fibre-Optic
| Attenuation | ≤0.4 dB/km at 1310 nm |
|---|
| Fibre type | Singlemode, OS 2 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -20 °C...70 °C |
| Operating temperature, min. | -20 °C |
|---|
