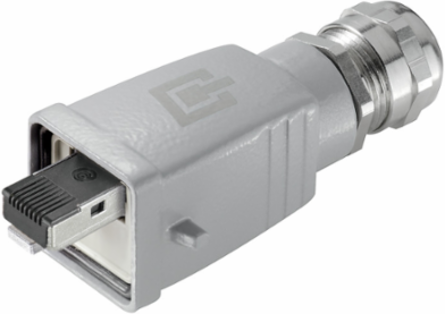

Weidmuller 1271250000 IE-PS-V05M-RJ45-FH-B
- MPN: 1271250000
- PPN: WDM-1271250000
CAD
$96.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RJ45 plug, no tools required, Cat.6A / Class EA (ISO/IEC 11801 2010)
Documentation & Downloads
Specifications
General Data
| Colour | black |
|---|---|
| Insulation cross-section, max. | 1.6 mm |
| Contact surface | Gold over nickel |
| Conductor connection cross-section, solid (AWG) | AWG 24...AWG 22 |
| Conductor connection cross-section, flexible (AWG) | AWG 26...AWG 22 |
| MICE classification I | I3 |
| MICE classification E | E3 |
| Ability to reconnect | ≥ 10 cycles (for the same or larger cross-section) |
| Insulation cross-section, min. | 0.85 mm |
|---|---|
| Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |
| Connection diameter, solid | 0.4...0.64 mm |
| Connection diameter, flexible | 0.48...0.76 mm |
| MICE classification M | M3 |
| MICE classification C | C1 |
| Protection degree | IP67 |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|

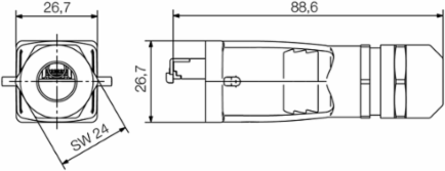

Dimensions And Weights
| Net weight | 93.7 g |
|---|
Standards
| Generic communication cable facilities | ANSI / TIA / EIA-568-B.2-10, DIN EN 61918 Draft 02.2007, EN 50173-1:2007, ISO / IEC 11801:2002, ISO / IEC 24702:2006 |
|---|
| Application-specific communication cable facilities | PROFINET installation instructions |
|---|
Classifications
| ETIM 6.0 | EC001121 |
|---|---|
| eClass 9.0 | 27-44-03-90 |
| eClass 10.0 | 27-44-03-90 |
| ETIM 7.0 | EC001121 |
|---|---|
| eClass 9.1 | 27-44-03-90 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
