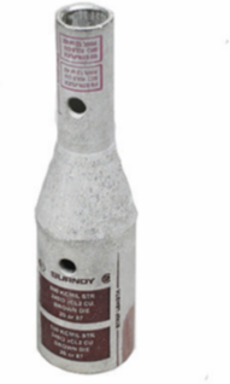

Burndy YSR3425FXLTCKITC In-line Reducer Splice Kit, 500 kcmil to 1/0 AWG, 35 kV, Copper, Electro-Tin Plated
- MPN: YSR3425FXLTCKITC
- UPC: 781810344996
- PPN: BUR-10021656
CAD
$238.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Compression CU Reducer/Splice kit, W/InspWindow, Barrel A:500 kcmil(Str) Barrel B:1/0 AWG(Flex - Str), Standard Barrel, Electro-Tin Plated
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-11/16 in |
|---|---|
| Dimension - L Length Overall mm | 102 mm |
| Dimension - Length Overall inch | 4.01 in |
| Dimension - B Length inch | 1.69 in |
|---|---|
| Dimension - Length BB inch | 1.04 in |
| Dimension - Strip Length inch | 1.60 in |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | No |
Conductor Related
| Conductor - Copper Flex G Size B | 1/0 AWG |
|---|---|
| Conductor - Copper Flex H Size B | 1/0 AWG |
| Conductor - Copper Flex I Size B | 1/0 AWG |
| Conductor - Copper Flex K Size B | 1/0 AWG |
| Conductor - Copper Flex M Size B | 1/0 AWG |
| Conductor - Copper Str Size | 500 kcmil |
| Conductor - Copper Str Size A Range | 500 kcmil |
| Conductor - Copper Flex G Size B Range | 1/0 AWG |
|---|---|
| Conductor - Copper Flex H Size B Range | 1/0 AWG |
| Conductor - Copper Flex I Size B Range | 1/0 AWG |
| Conductor - Copper Flex K Size B Range | 1/0 AWG |
| Conductor - Copper Flex M Size B Range | 1/0 AWG |
| Conductor - Copper Str Size A | 500 kcmil |
| Conductor - Copper Str Size B | 1/0 AWG |
General
| Color Code - Side A | Brown |
|---|---|
| Connector Type | Reducer;Splice |
| Die Index - Element B | 12 |
| Die Index Tap Side | 12 |
| Feature - Barrel Type | Standard |
| Plated | Y |
| Temperature Rating | 194 |
| UPC | 781810344996 |
| Color Code - Side B | Pink |
|---|---|
| Die Index - Element A | 20 |
| Die Index Run Side | 20 |
| Feature - Barrel Style | Skived |
| Material | Copper |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYREDUCER™ |
| UPC 12 Digit | 7818103449966 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
