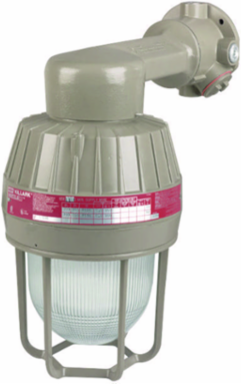

Killark EMI30B2 Explosion Proof Incandescent 300W Fixture, 3/4 Inch Hub, Powder Epoxy Finish

MPN: EMI30B2
UPC: 783936135021
PPN: HBL-EMI30B2

$1915.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The EM series Explosion Proof medium base fixture is designed for low bay applications. This fixture is made with a cast copper-free aluminum housing and mount that is powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments. The EM Series is factory sealed so no external seal is required in Explosive environments.

Features

Four light sources—Incandescent, compact fluorescent, high pressure sodium and metal halide
Mounting choice—Pendant, ceiling, 25˚ stanchion or 90˚ wall mount, all with “wireless” design that allows fast, easy fixture installation
Factory sealed—No external seal needed. Simply wire mounting cap and thread on fixture to install
Compact size—Medium base incandescent and HID lamps, plus PL fluorescent lamps allow smaller fixture design
Corrosion resistant—Copper-free aluminum die-cast construction.
Baked powder epoxy finish, electrostatically applied.
Exposed hardware is 316 grade stainless steel.

Documentation & Downloads

Specifications

Key Specifications

Finish Type	Powder Epoxy Paint
Light Source	Incandescent
Mounting Type	Wall Bracket
Series	EM
Hub Size	3/4"
Voltage Rating	120-277 VAC
Carton Quantity	1

Lamp Type	Medium Base
Material	Aluminum, Copper Free (less than 4/10 of 1%)
Optic Type	Glass Globe - Fluted
UPC	783936135021
Frequency Rating	60 Hz
Wattage	300 W
