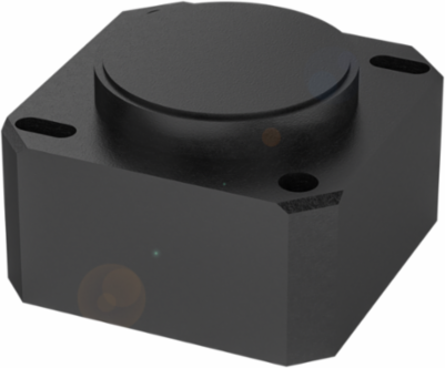

Balluff BSI Q41K0-XB-MYS015-S92 Inclination Sensor, 2 Measuring Axes, IP67, MEMS, -15 to 15° Range
Balluff BSI Q41K0-XB-MYS015-S92 Inclination Sensor, 2 Measuring Axes, IP67, MEMS, -15 to 15° Range
- MPN: BSI Q41K0-XB-MYS015-S92
- PPN: BAL-BSI000W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$455.25/ EA
Description
The Balluff inclination sensor is designed to deliver precise measurements across two axes, making it an essential tool for various industrial applications. With a robust plastic housing and an impressive IP67/IP69 rating, this sensor is built to withstand harsh environments while providing reliable performance. It operates within a temperature range of -40 to 80 °C and features a MEMS measuring principle, ensuring high accuracy and resolution of up to 0.09°. The sensor offers a measuring range of -15° to 15° and utilizes a dual analog output of 4-20 mA for seamless integration into existing systems. Its compact design and reliable specifications make it an ideal choice for applications requiring precise inclination measurements.
Specifications
Specifications
- Country of Origin
- Netherlands
- Measuring axes
- 2
- Operating voltage Ub
- 10...30 VDC
- Resolution
- ≤ 0.09 °
- Connection
- Connector, M12x1
- Ambient temperature
- -40...80 °C
- Approval/Conformity
- CE; cULus; WEEE
Measuring principleMEMS
Measuring range-15...15°
Interface2x Analog, current 4…20 mA
Accuracy±1.0°
Housing materialPlastic
IP rating per IEC 60529IP67; IP69
Additional textCentering in a range of ±5° from horizontal is possible
