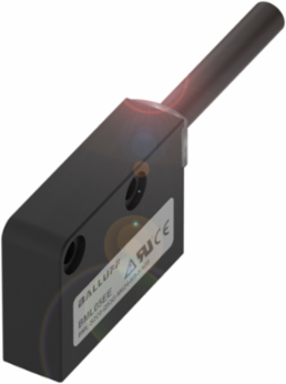

Balluff BML-S2C0-Q53L-M600-N0-KF05 Incremental linear magnetic encoder system - BML05ER
Balluff BML-S2C0-Q53L-M600-N0-KF05 Incremental linear magnetic encoder system - BML05ER
- MPN: BML-S2C0-Q53L-M600-N0-KF05
- PPN: BAL-BML05ER
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$591.59/ EA
Specifications
Specifications
- Country of Origin
- Hungary
- Connection
- Cable, 5 m, PUR
- Interface
- Digital A/B (HTL)
- Read distance
- 0.01...6.5 mm
- Reference signal
- without reference signal
- Ambient temperature
- -20...80 °C
- Procedure direction
- Lengthwise to tape
Dimension10 x 25 x 35 mm
Housing materialPBT
Resolution100 µm
Non-linearity max.±400 µm (z=1…5 mm, y=±2 mm)
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP67
Approval/ConformitycURus; CE; UKCA; WEEE
