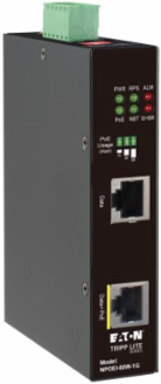

Tripp Lite NPOEI60W1G Industrial Gigabit Ethernet PoE++ Midspan Injector, 802.3bt, 60W, DIN Rail, IP30, 1 Port

MPN: NPOEI60W1G
UPC: 037332265913
PPN: TRP-NPOEI-60W-1G

$452.95

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Industrial Gigabit Ethernet PoE injector, 60W PoE++, 802.3bt, Midspan, -40℃ to +75℃, IP30 housing, Dual 24-57VDC , DIN rail, 1 Port, TAA

Features

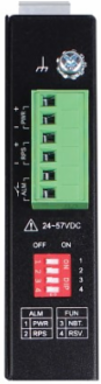

24-57VDC terminal block

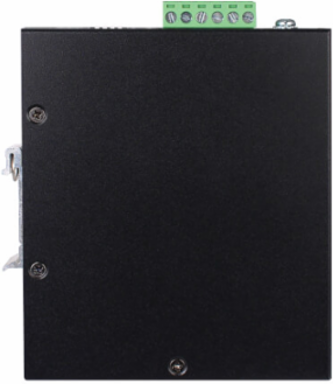

DIN rail-mounting kit

Documentation & Downloads

Specifications

Performance

PoE Type	Type 3 PoE++/UPoE (60W, IEEE 802.3bt)
Output Voltage	54
Input Frequency	50/60 Hz
Operating Temperature Range	-49° to 167°F (-40° to 75°C)
Relative Humidity	5% to 95% RH, Non-Condensing

DC Output Current	1.6A
Voltage Compatibility	24-57
Network Compatibility	1 Gbps (Gigabit)
Storage Temperature Range	-49° to 185°F (-40° to 85°C)
IEEE Standards Supported	802.3af; 802.3at; 802.3bt

Dimensions

Product Type	Ethernet PoE Injector
Number of Ports	2
Side B - Connector 1	RJ45 (FEMALE)

Technology	PoE
Side A - Connector 1	RJ45 (FEMALE)
Unit Dimensions	4.570 x 0.980 x 3.930

Material

Primary Form Factor	Desktop; DIN-Rail; Rackmount; Wall-mount
LED Indicators	PWR (Green) - Power; RPS (Green) - Redundant Power; ALM (Red) - Primary/Secondary power lost, PoE overload; PoE (Green) - PoE in use; NBT (Green) - Detection Mode is enabled; 62-66W (Red) - Overload; PoE Usage (Green) Injector PoE power range
