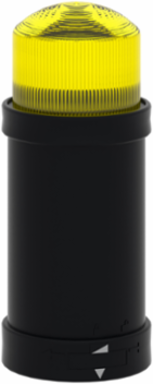

Harmony XVB Indicator Bank, 70mm, Yellow, Flash Discharge Tube, IP66

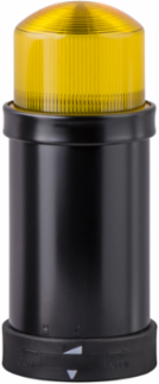

Harmony XVB Indicator Bank, 70mm, Yellow, Flash Discharge Tube, IP66

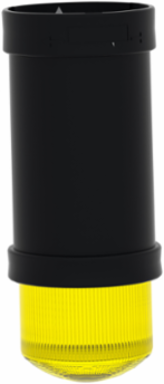

Harmony XVB Indicator Bank, 70mm, Yellow, Flash Discharge Tube, IP66
Schneider Electric

Schneider Electric XVBC8G8 Harmony XVB Indicator Bank, 70mm, Yellow, Flash Discharge Tube, IP66

  • MPN: XVBC8G8
  • PPN: SCH-XVBC8G8
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $528.94

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This yellow illuminated unit is designed to be connected with base to create complete tower light. Its flash discharge tube offers a strobe light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Czechia, France

    Physical Attributes

    Cad Overall Depth
    70 mm
    Cad Overall Width
    70 mm
    Cad Overall Height157 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Current Consumption
    < 290 mA AC, < 290 mA AC< 290 mA AC, < 290 mA AC
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Assembly Style
    customer assembly, up to 5 units
    Bulb Type
    flash discharge tube
    Electrical Shock Protection Class
    class I on support tube IEC 61140class II on base unit IEC 61140
    Flashing Frequency
    1-1 Hz
    Light Source
    integral flash discharge tube, yellow
    Mounting Diameter
    70 mm
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Protective Treatment
    TC
    Returnability
    Yes
    Sustainable Packaging
    Yes
    [Ui] Rated Insulation Voltage
    250 V IEC 60947-1
    [Us] Rated Supply Voltage
    120 V AC
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8531909001
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Certificate AgencyCCC, EAC, CSA C22-2 No 14, UL 508
    Local Publishable Date2026-03-31
    Stocking FlagY
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Beacon Or Indicator Bank Unit Typeilluminated unit
    Component NameXVBC
    Flash Energy10 J
    Important MessageXVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.
    Materialpolycarbonate
    Nominal Voltage Limit0.85...1.1 Un IEC 60947-5-1
    Product Or Component Typeindicator bank
    Range Of ProductHarmony XVB Universal
    Signalling Typeflashing
    Pep CodeENVPEP0709007EN
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
    Connections - Terminalsscrew clamp terminals, <= 1 x 1.5 mm² with cable end
    Package Weight(Lbs)315.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Eu Rohs Directive
    Compliant By Exemption
    Nema Degree Of Protection
    UL type 4X UL indoor)
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP0709007EN
    Take BackNo
    China Rohs RegulationX
    Environmental DisclosureENVPEP0709007EN
    Ip Degree Of ProtectionIP65 on fixing base XVBZ0. IEC 60529IP66 on base unit IEC 60529
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Product Or Component Type
    indicator bank
    Range Of ProductHarmony XVB Universal

    ETIM

    ETIM 8
    EC000232
    ETIM 9EC000232

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
