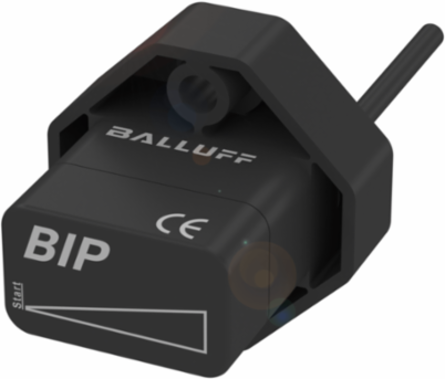

Balluff BIP AD2-T014-01-EB02-505 Inductive positioning systems BIP AD2-T014-01-EB02-505
- MPN: BIP AD2-T014-01-EB02-505
- PPN: BAL-BIP000T
CAD
$784.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our sensors with the BIP inductive positioning system detect the position of metallic objects. They ensure the continuous positioning of the objects over the whole measurement range. The most important features: flexibly adjustable measurement range, application-oriented repeatability and linearity, multifaceted design concept, analog and digital interfaces.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 35 x 35 x 31 mm
- Connection
- Cable, 2.00 m, PUR
- Measuring range
- 0-14 mm
- Output characteristic
- Adjustable
- Non-linearity max.
- ±250 µm
- Ambient temperature
- -25-70 °C
- Approval/Conformity
- CE, cURus, EAC, WEEE
Styleblock style
Housing materialPA
Analog outputAnalog, voltage 0-10 V
Repeat accuracy±80 µm
Operating voltage Ub15-30 VDC
IP ratingIP67
