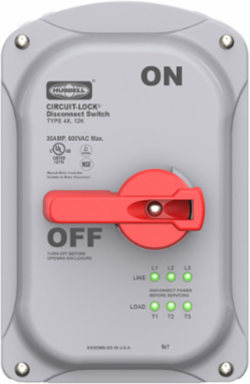

Hubbell Wiring Device-Kellems HBLDS30RCP Industrial Grade 30A Non-Metallic Motor Disconnect with LED Indicators
- MPN: HBLDS30RCP
- UPC: 783585763156
- PPN: HBL-HBLDS30RCP
- UNSPSC: 39122205
CAD
$232.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Industrial Grade, Motor Disconnect, Unfused Switch, Non-Metallic Sloped Replacement Cover for 30A HBLDS30 and HBLDS30T Series With inTOUCH Installation Free LED Phase Indication, cULus, NSF, CE, UL 508 / UL 60947-4-1A
Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
- IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
- Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
- Product rating are permanently laser-marked and will not wash off
- LED Power Indicators
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Description - Slang | Industrial Grade, Motor Disconnect, Unfused Switch, Non-Metallic Replacement Cover for 30A With inTOUCH Installation Free LED Phase Indication, HBLDS30 and HBLDS30T Series |
| Industry Standard(s) | cULus Listed |
| Application | Heavy Duty Industrial and/or Washdown |
| Environmental Conditions | Indoor and Outdoor |
| Operating Temperature | Without Impact Maximum continuous 75°C and minimum -40 °C |
| Standard | cULus Listed |
| Weight | 1 lb. |
| Enclosure Type | IP69k and UL Type 4X, 12 |
| Style | Replacement Cover |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Material - Mounting Hardware | Stainless Steel Screw Mounting |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585763156 |
| Pallet Height | 51.000 in |
| Pallet Weight | 421.600 lb. |
| Color | Gray |
|---|---|
| Width | 5.500 in |
| Ingress Protection | IP69k, NEMA Type 4X, 12 |
| Enclosure | IP69k and UL Type 4X, 12 |
| Operating Cycles | 10,000 Cycles Minimum |
| Special Features | LED Power Indicators |
| Type | Accessories |
| General Literature Asset 1 Display Text | Circuit-Lock® Rounded Sloped Top Motor Disconnects |
| Shape | Rounded Top |
| Class Code | A16 |
| Harmonization Code | 8538908180 |
| Sub Class Code | A16A260 |
| Series | Non-Fused |
| BOX SIZE | 4.600x9.200x5.500 (in) |
| Case Weight | 1.060 lb. |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
