Sta-Kon RA18-250A INS NYL FEM-250 DISC 22-18 LEN .8
- MPN: RA18-250A
- UPC: 786210894423
- PPN: T-B-RA18-250A
- UNSPSC: 39121447
CAD
$2.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

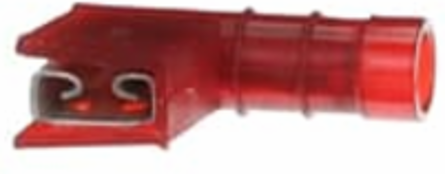

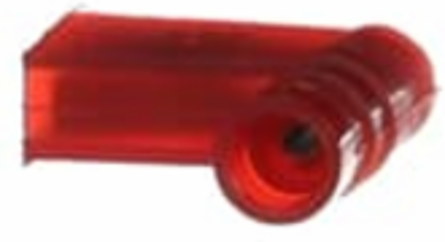

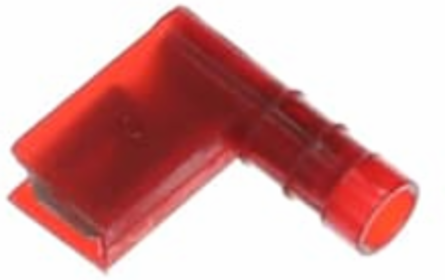

Nylon Insulated Open Top 90 Degree Flag Female Disconnect Terminal, Length .80 Inch, Width .71 Inch, Maximum Insulation .170, Tab Size .250x.032, Wire Range #22-#18 AWG, Color Red, Brass, Tin Plated
Features
- Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | Sta-Kon |
| Finish | Tin Plated |
| Insulation | Nylon/Polyamide |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4667 |
| Standard | UL E66716 |
| Material | Brass |
| Color | Red |
