Schneider Electric VW3L40210 M8 Connector Insert for I/O Signals & Safe Torque Off, 0.036 kg
- MPN: VW3L40210
- PPN: SCH-VW3L40210
CAD
$331.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

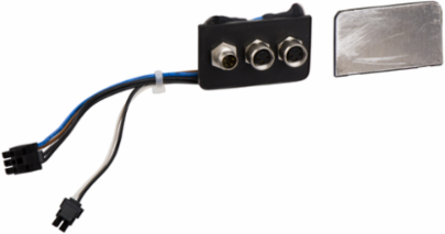

This product is part of the Lexium ILA, ILE, ILS range, an offer of motion integrated drives for motion control. The communication interface insert provides two I/O signals and a STO signal. It is furnished with 4-pin M8 male connector for safe torque off and two 3-pin M8 female connectors for 2 I/O signals. It weighs 0.036kg. It is compatible for use with Lexium integrated drives. The kit includes 1 insert with connectors and 1 insert for sealing (IP54).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia, United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Electrical Connection | 1 male connector M8 4 pins for connection of signals for safe torque off, 2 female connectors M8 3 pins for connection of 2 I/O signals |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium integrated drive |
| Sustainable Packaging | No |
| Accessory / Separate Part Destination | for drives |
| Input/Output Type | 2 I/O signals + 1 STO signal |
| Package Weight(Lbs) | 36.0 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Kit Composition | 1 insert with connectors, 1 sealing insert |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Serviceability | No |
| Weee Scope | Out |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Product Or Component Type | insert for communication interface |
| Returnability | No |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | connection accessories |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8544429090 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | insert for communication interface |
|---|
| Range Of Product | Lexium integrated drive |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|
| ETIM 9 | EC002025 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
