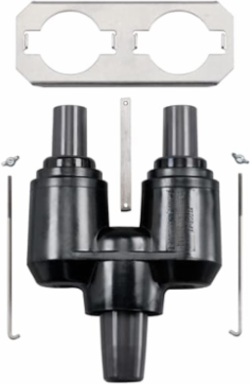

Thomas & Betts K1502-A1 INSERT FEED-THRU 200A DB 15/25K
- MPN: K1502-A1
- UPC: 783786625642
- PPN: T-B-K1502-A1
- UNSPSC: 26121630
CAD
$1386.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV 200 Amp, Deadbreak Feed-Thru Insert, Bails are required, but not included, order separately. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well. Elbows bail assemblies are required but not included with the feed-thru insert.
Specifications
Additional Information
| Application | Fully-shielded, fully submersible separable insulated connector designed for de-energized operation. The feed-thru insert fits a standard ANSI bushing well interface. Designed for use as an apparatus bushing interface. |
|---|---|
| Effective Date | 19980108 |
| Product Name | PRIMARY CABLE ACC. 200 SEP CON |
| Size | 9.82 inch (249.4 mm) long, 3.22 inch (81.8 mm) wide, 8.00 inch (203.2 mm) wide |
| Standards | ANSI/IEEE 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Feed-Thru Insert |
| Special Functions | 15/25kV, 200 Amp Deadbreak Rated. Fits standard Elastimold bushing well. Peroxide-cured insulation and jacket. Provision for ground wire connection. Provides extra deadbreak tap for well type connection. Rotatable for 360 degree mounting. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
