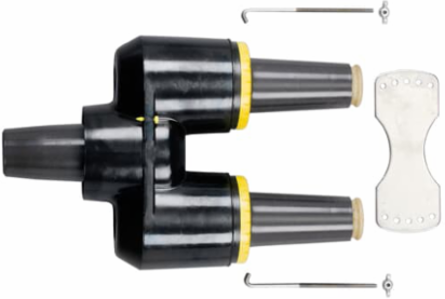

Thomas & Betts 1602A3R INSERT, FEED-THRU, 200A LB, 15KV
- MPN: 1602A3R
- UPC: 783786469468
- PPN: T-B-1602A3R
- UNSPSC: 26121630
CAD
$1289.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Feed-Thru Insert, Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well.
Specifications
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Additional Information
| Application | Designed for use as an apparatus bushing interface and provide extra tap connection. |
|---|---|
| Effective Date | 20050803 |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | 10.66 inch (270.8 mm) Length, 4.00 inch (101.6 mm) Center to Center, 7.00 inch (177.8 mm) wide. |
| Standards | ANSI/IEEE 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Feed-Thru Insert |
| Special Functions | 15kV, 200 Amp Loadbreak Rated. Transform radial feed transformer into loop-feed unit. Provide extra tap for elbow arrester connection. Peroxide-cured insulation and jacket. Provision for groundwire connection. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well. |
| Temperature Range | -40 to +65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
