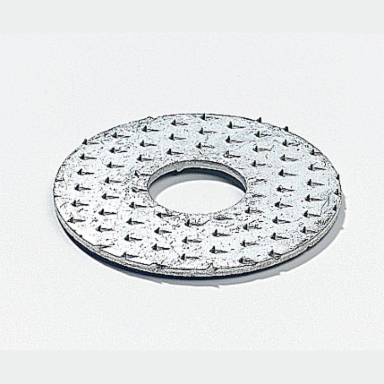

Dragon Tooth FPW12 Transition Washer
- MPN: FPW12
- UPC: 786210709970
- PPN: T-B-FPW12
CAD
$2.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Insulation Piercing Washer, Outer Diameter 31.8mm (1.25 Inches), Inner Diameter 14.2mm (0.56 Inch), Stud Size 1/2 Inch, Copper Alloy, Tin Plated
Features
- Accomodates the difference in thermal expansion between copper and aluminum and enhances the efficiency of bolted grounding connections.
- Enables copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 31161807 Flat washers |
|---|---|
| Brand Name | Dragon Tooth |
| Special Features | Accommodates the difference in thermal expansion between copper and aluminum and enhances the efficiency of bolted grounding connections. |
| Standard | UL E9809 |
| Finish | Tin Plated |
| Outside Diameter | 1.25 Inches/31.8mm |
| Fits Bolt Sizes | 1/2 Inch |
| IGCC | 2885 Flat washers |
|---|---|
| Type | Transition Washer |
| Application | Enables copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds. |
| Material | Copper Alloy |
| Thickness | 0.035 Inch/0.89mm |
| Inside Diameter | 0.56 Inch/14.2mm |
European Specifications (ETIM)
| ETIM | EC002345 Serrated lock washer |
|---|---|
| Material quality | Other |
| Suitable for bolt size metric (M..) | 12 |
| Inner diameter | 14.2mm |
| Thickness | 0.89mm |
| Material | Other |
|---|---|
| Surface protection | Other |
| Model | Double toothing |
| Outer diameter | 31.8mm |
Packaging
| Inner Quantity | 250 |
|---|---|
| Outer Quantity | 2500 |
| Weight Uom | 1.13 lbs. per 100 |
| Inner Dimensions (inches) | 4x4x3 |
|---|---|
| Outer Dimensions (inches) | 21.5x8.5x3.5 |
