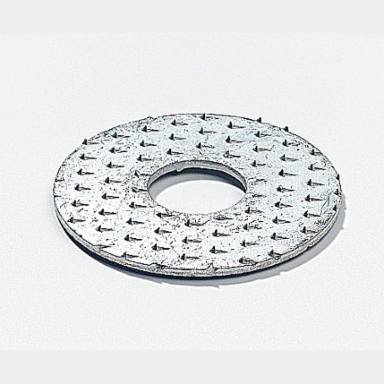

Dragon Tooth FPW14 Transition Washer
- MPN: FPW14
- UPC: 786210709949
- PPN: T-B-FPW14
CAD
$1.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Insulation Piercing Washer, Outer Diameter 17.3mm (0.68 Inch), Inner Diameter 6.9mm (0.27 Inch), Stud Size 1/4 Inch, Copper Alloy, Tin Plated
Features
- Accomodates the difference in thermal expansion between copper and aluminum and enhances the efficiency of bolted grounding connections.
- Enables copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds.
Documentation & Downloads
Specifications
Packaging
- Inner Quantity
- 250
- Outer Quantity
- 2500
- Weight Uom
- 1.25 lbs. per 1000
Inner Dimensions (inches)3.3x2.8x2.3
Outer Dimensions (inches)16.5x6.75x4.25
European Specifications (ETIM)
- ETIM
- EC002345 Serrated lock washer
- Material quality
- Other
- Model
- Double toothing
- Outer diameter
- 17.3mm
MaterialOther
Surface protectionOther
Inner diameter6.9mm
Thickness0.89mm
North American Specifications (UNSPSC)
- UNSPSC
- 31161807 Flat washers
- Brand Name
- Dragon Tooth
- Special Features
- Accommodates the difference in thermal expansion between copper and aluminum and enhances the efficiency of bolted grounding connections.
- Standard
- UL E9809
- Finish
- Tin Plated
- Outside Diameter
- 0.68 Inch/17.3mm
- Fits Bolt Sizes
- 1/4 Inch
IGCC2885 Flat washers
TypeTransition Washer
ApplicationEnables copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds.
MaterialCopper Alloy
Thickness0.035 Inch/0.89mm
Inside Diameter0.27 Inch/6.9mm
