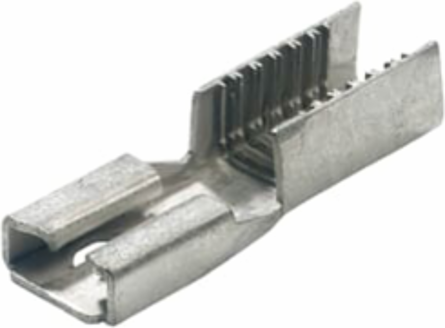

Dragon Tooth 22LF06 INSUL PRC FEM DISCON CU 16-12 AWG
- MPN: 22LF06
- UPC: 786210818658
- PPN: T-B-22LF06
- UNSPSC: 39121447
CAD
$0.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Insulation Piercing Magnet Wire Female Disconnect, Length .91 Inches, Width .25 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Tab Size .250 x .032, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated
Specifications
Additional Information
| Application | For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections. |
|---|---|
| Effective Date | 19801202 |
| Product Name | ELECTRICAL TERMINAL |
| Special Functions | Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire. |
| Sub Brand / Label | Dragon Tooth |
| Brand / Label | Sta-Kon |
|---|---|
| Material | Copper |
| Product Type | Vinyl Insulated Female Disconnect |
| Standards | UL E9809 |
| Surface Finishing | Tin Plated |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4667 >> Wire terminal disconnect |
|---|
